Under bridge unit

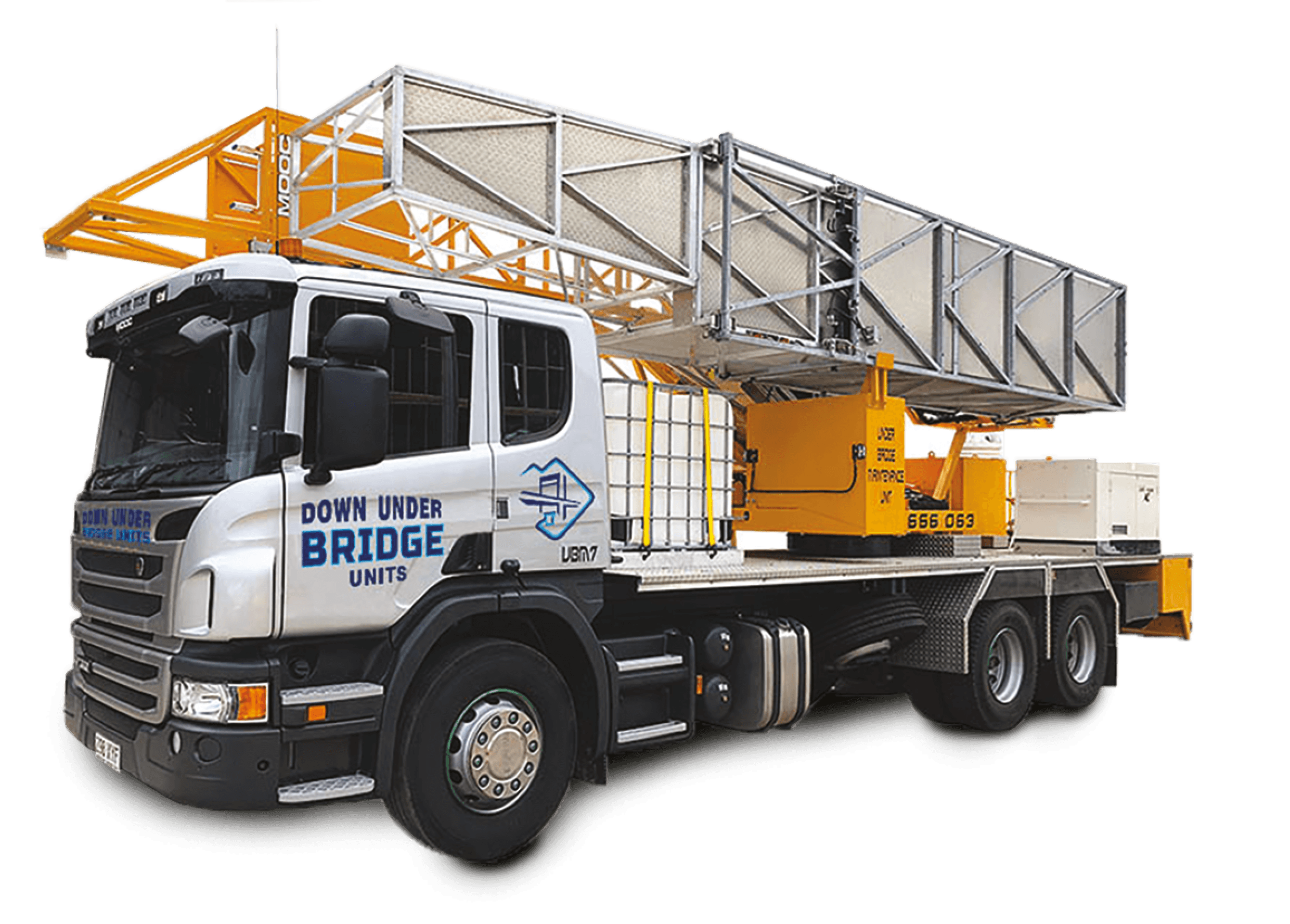

7m - 14m Moog Truck Mounted Platform
UBM 7 & 8
Download PDF7m - 14m Moog Truck Mounted Platform
500kg platform load

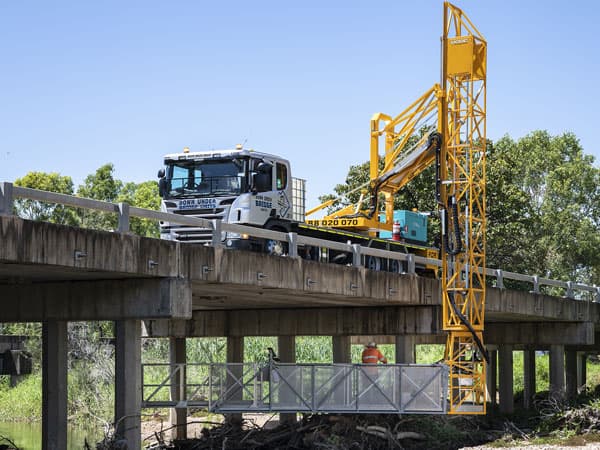

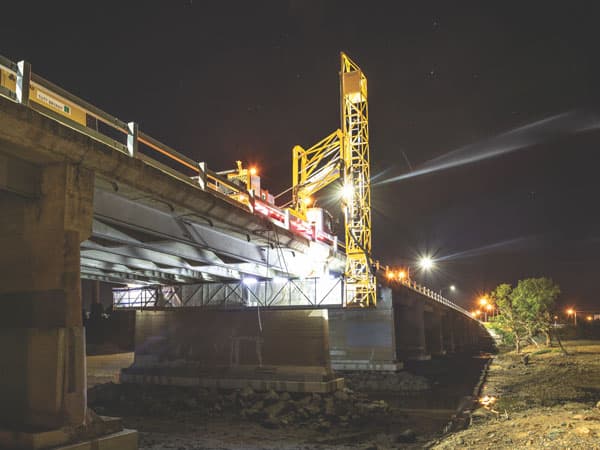

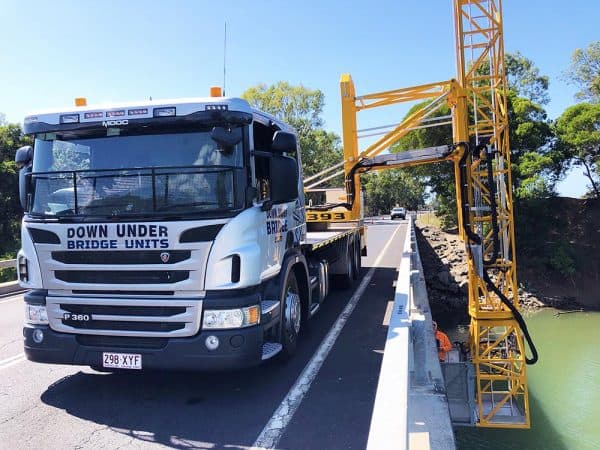

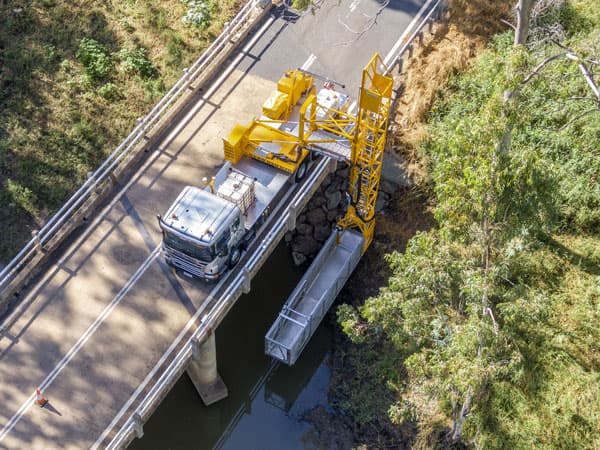

Designed for safe, productive access beneath structures, this work platform accommodates up to four operators and is ideal for rehabilitation works on bridges, wharves, and jetties, as well as inspections and investigations. It allows access from one side of most two-lane bridges without the need for lane changes, helping reduce disruption on site. With fast setup and pack-up, plus a generator, screw compressor, pressure washer, and water pods included at no extra cost, it is fully equipped to get the job done.
Specifications
15 data points
Tower Specs
- Max Platform length under bridge
- 7m - 14 m
- Max Platform length alongside bridge
- 9 m
- Max lowering depth
- 7.2 m
- Width of platform
- 1.2 m
- Side walk clearance
- 2.3 m
- Hand rail / Barrier max clearance
- 2.9 m
- Operational footprint
- 2.5 m
- Max load at end of telescopic platform
- 150 kg
- Safe working load across platform
- 500 kg
- Rotation of platform under bridge
- 180° degrees
- Deployment side
- Left and right
Truck Specs
- Traveling height (stowed)
- 3.5 m
- Traveling width
- 2.5 m
- Traveling length
- 10.5 m
- Overall weight (approx)
- 23,000 kg

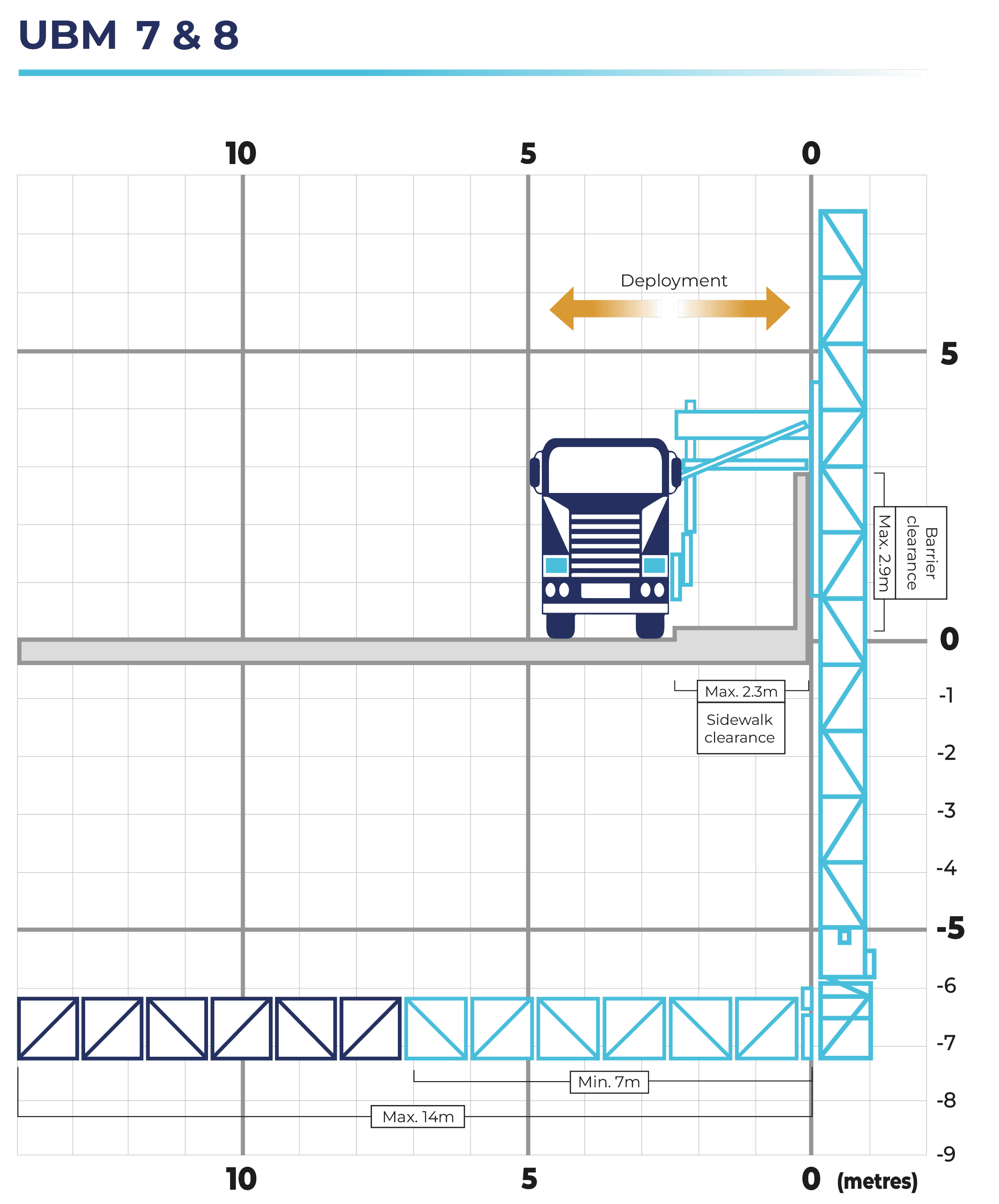

Working Envelope
Reach diagram
Additional Equipment
Equipment installed on unit available for client usage.
- Generator 6KVA (silenced) : Single-Phase
- Screw Compressor 100CFM
- Pressure Cleaner 3500psi
- Water Tank - Capacity to carry 1000L
- Starlink
Wet Hire Rates
Daily rate excl GST
UBM 7 & 8Truck Mounted Platform
Across7 - 14 m
Down7.2 m
Up0 m
$2,808.00($351 per hr)
- Wet hire refers to Hire of Unit and our operator.Additional operators can be provided for an additional charge.Minimum hire period = 8 hours (incl travel). After 8 hours, truck hourly rate + overtime applies.Overtime = Hire over 8 continuous hours, hire on weekends and hire between the hours of 6pm – 6am.
- Overtime = "Truck hourly rate" plus $59 per hour (+ GST).Public Holiday rate = "Truck hourly rate" plus $78 per hour (+ GST).Travel is subject to overtime and public holiday rates.
- Living Away from Home Allowance per operator = $350.00 per day (+GST).
