Under bridge unit

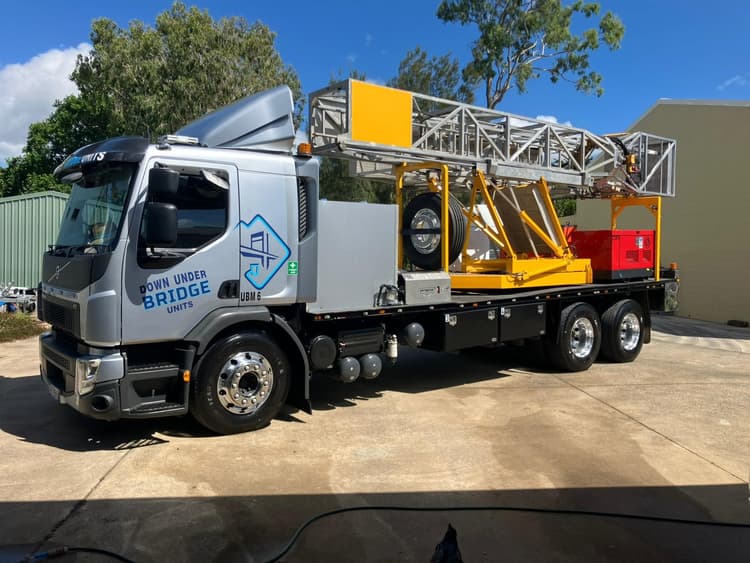

4m - 9m Moog Truck Mounted Platform
UBM 6
Download PDF4m - 9m Moog Truck Mounted Platform
400kg platform load

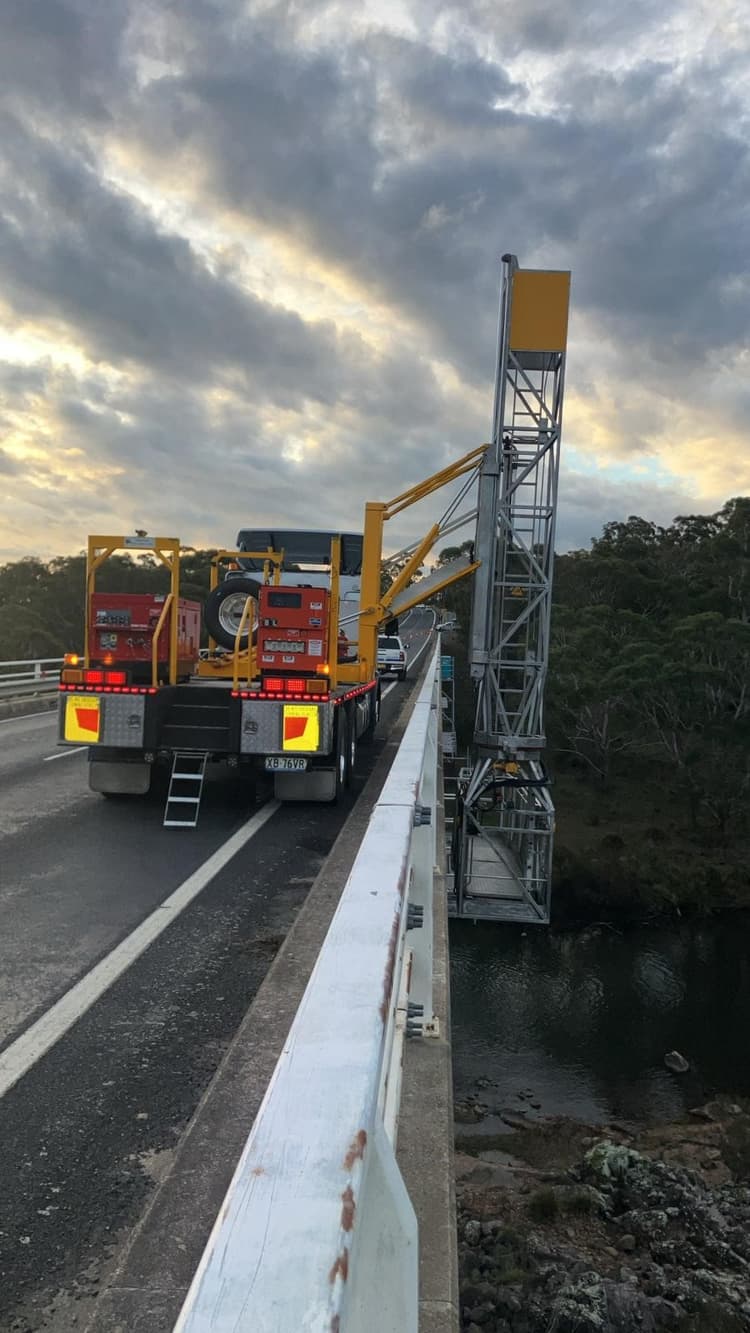

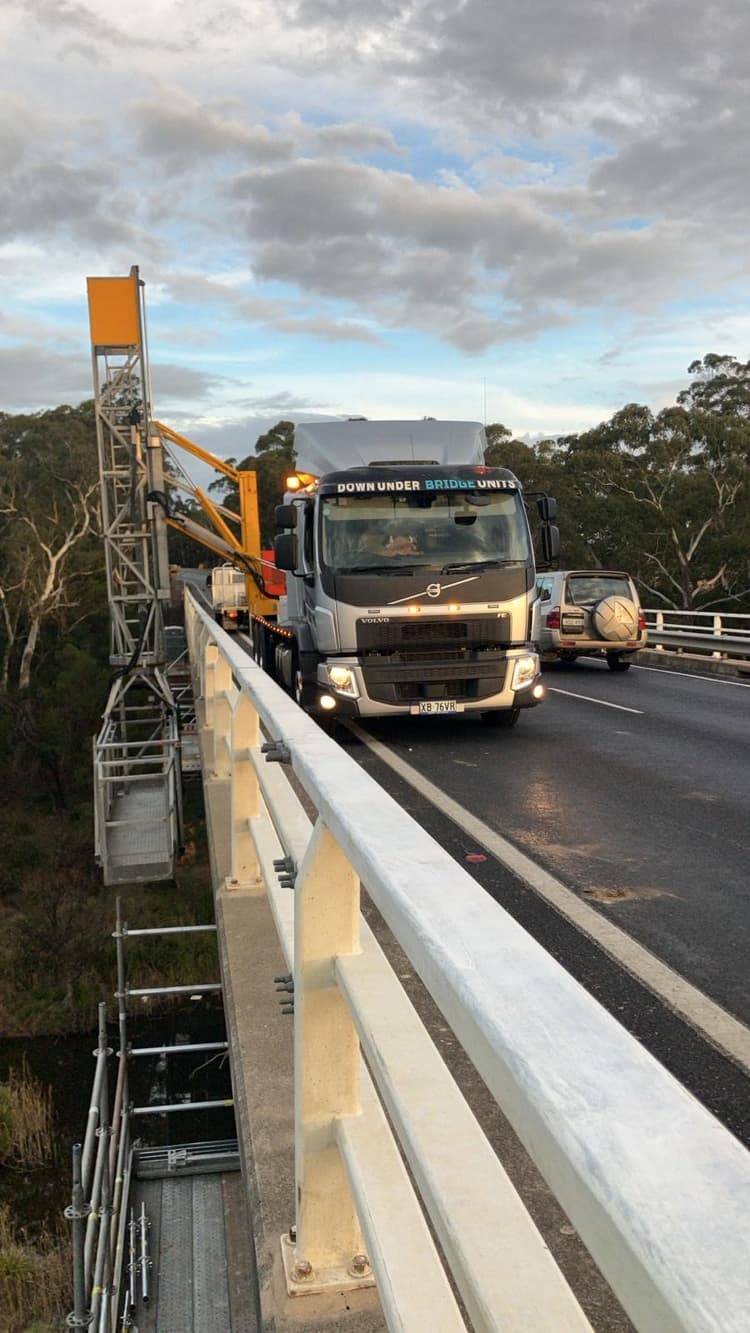

Built for safe and efficient access beneath structures, this work platform accommodates up to three operators and is ideal for rehabilitation projects on bridges, wharves, and jetties, as well as inspections and investigations. With fast setup and pack-up, it helps maximise productivity on site. A generator, screw compressor, pressure washer, and water pods are all included at no extra cost, so you have everything you need to get the job done.
Specifications
15 data points
Tower Specs
- Max Platform length under bridge
- 4m - 9 m
- Max Platform length alongside bridge
- 5 m
- Max lowering depth
- 5.5 m
- Width of platform
- 1 m
- Side walk clearance
- 1.3 m
- Hand rail / Barrier max clearance
- 2.4 m
- Operational footprint
- 2.5 m
- Max load at end of telescopic platform
- 200 kg
- Safe working load across platform
- 400 kg
- Rotation of platform under bridge
- 180° degrees
- Deployment side
- Left and right
Truck Specs
- Traveling height (stowed)
- 3.5 m
- Traveling width
- 2.5 m
- Traveling length
- 8.1 m
- Overall weight (approx)
- 14,000 kg

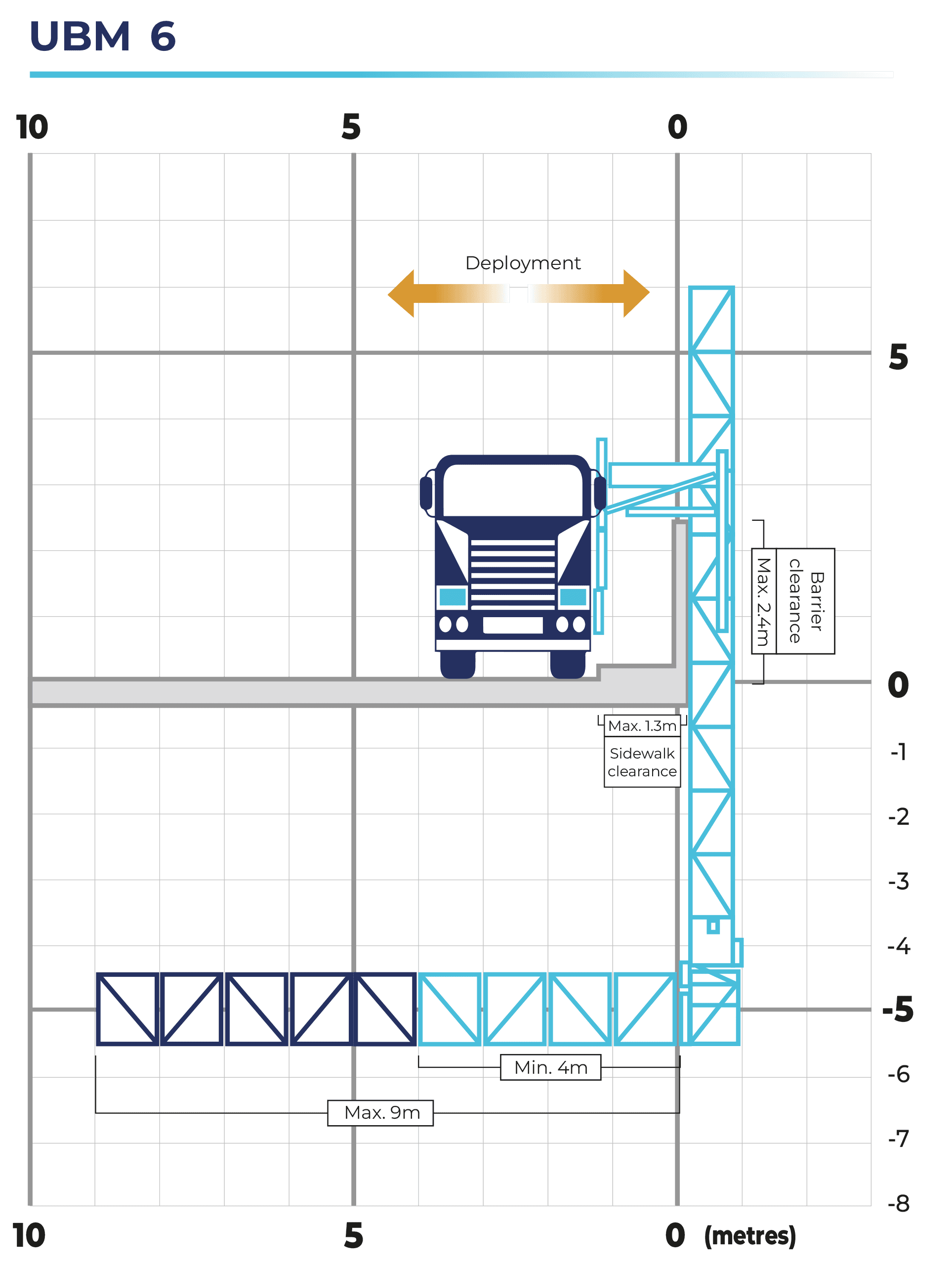

Working Envelope
Reach diagram
Additional Equipment
Equipment installed on unit available for client usage.
- 3-phase 18KVA Generator
- Screw Compressor 100CFM
- Electric Pressure Cleaner 3200psi
- Water Tank - Capacity to carry 2000L
- Starlink
Wet Hire Rates
Daily rate excl GST
UBM 6Truck Mounted Platform
Across4 - 9 m
Down5.5 m
Up0 m
$2,600.00($325 per hr)
- Wet hire refers to Hire of Unit and our operator.Additional operators can be provided for an additional charge.Minimum hire period = 8 hours (incl travel). After 8 hours, truck hourly rate + overtime applies.Overtime = Hire over 8 continuous hours, hire on weekends and hire between the hours of 6pm – 6am.
- Overtime = "Truck hourly rate" plus $59 per hour (+ GST).Public Holiday rate = "Truck hourly rate" plus $78 per hour (+ GST).Travel is subject to overtime and public holiday rates.
- Living Away from Home Allowance per operator = $350.00 per day (+GST).
