Under bridge unit
4m - 7m Moog Truck Mounted Platform
UBM 4
Download PDF4m - 7m Moog Truck Mounted Platform
400kg platform load
Weighing under 8 tonnes, this lightweight platform offers a practical access solution without fatigue management requirements. Designed for up to three operators, it is ideal for timber bridge maintenance, including greasing, bolt tightening, and termite treatments. With fast setup and pack-up, you can get to work quickly, and a generator is included at no extra cost.
Specifications
15 data points
Tower Specs
- Max Platform length under bridge
- 4m - 7 m
- Max Platform length alongside bridge
- 4 m
- Max lowering depth
- 5 m
- Width of platform
- 1 m
- Side walk clearance
- 1.3 m
- Hand rail / Barrier max clearance
- 2.4 m
- Operational footprint
- 2.3 m
- Max load at end of telescopic platform
- 200 kg
- Safe working load across platform
- 400 kg
- Rotation of platform under bridge
- 180° degrees
- Deployment side
- Left only
Truck Specs
- Traveling height (stowed)
- 3.5 m
- Traveling width
- 2.3 m
- Traveling length
- 7.4 m
- Overall weight (approx)
- 7,800 kg

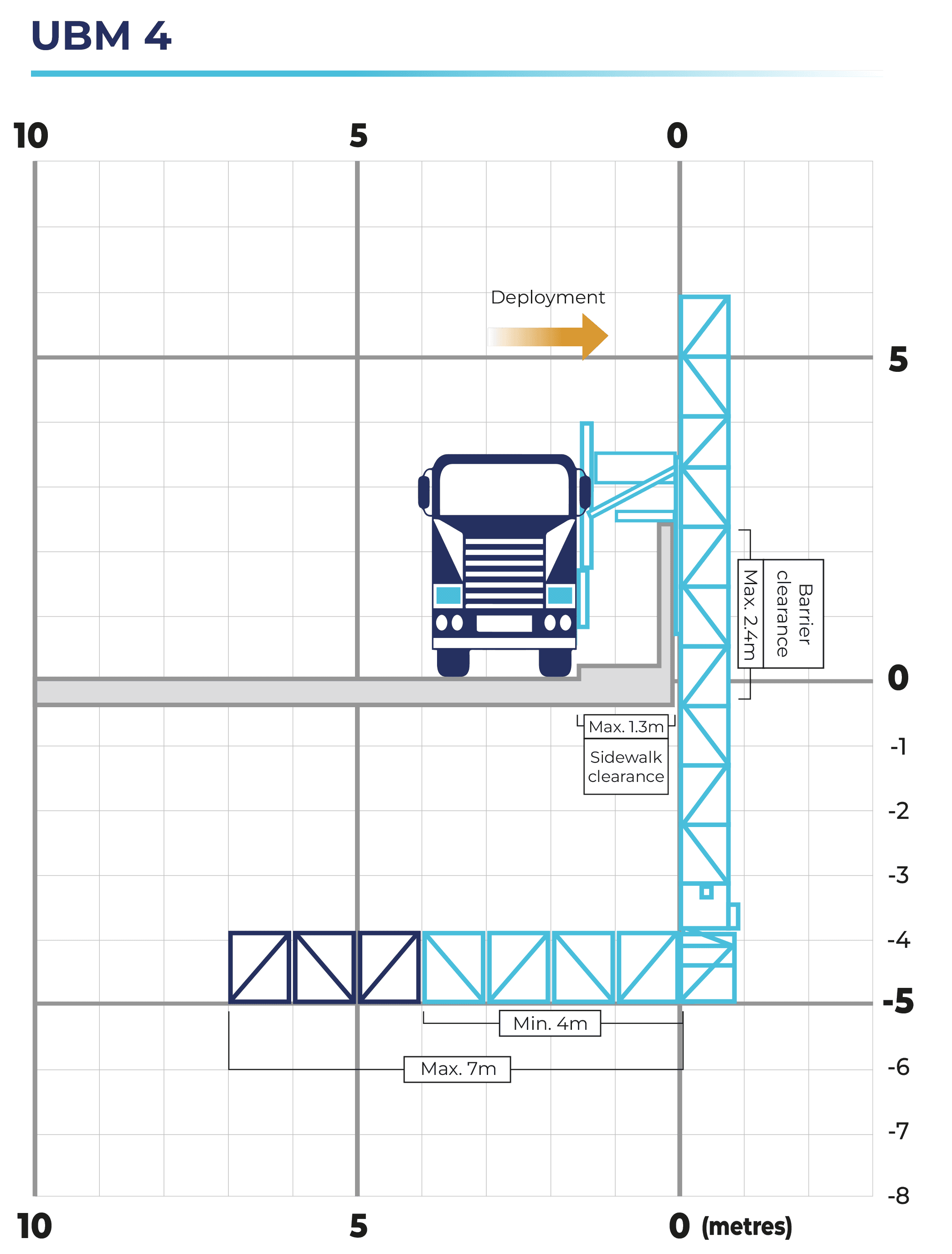

Working Envelope
Reach diagram
Additional Equipment
Equipment installed on unit available for client usage.
- Generator 6KVA
- Starlink
Wet Hire Rates
Daily rate excl GST
UBM 4Truck Mounted Platform
Across4 - 7 m
Down5 m
Up0 m
$2,392.00($299 per hr)
- Wet hire refers to Hire of Unit and our operator.Additional operators can be provided for an additional charge.Minimum hire period = 8 hours (incl travel). After 8 hours, truck hourly rate + overtime applies.Overtime = Hire over 8 continuous hours, hire on weekends and hire between the hours of 6pm – 6am.
- Overtime = "Truck hourly rate" plus $59 per hour (+ GST).Public Holiday rate = "Truck hourly rate" plus $78 per hour (+ GST).Travel is subject to overtime and public holiday rates.
- Living Away from Home Allowance per operator = $350.00 per day (+GST).
Need under bridge access?
