Under bridge unit

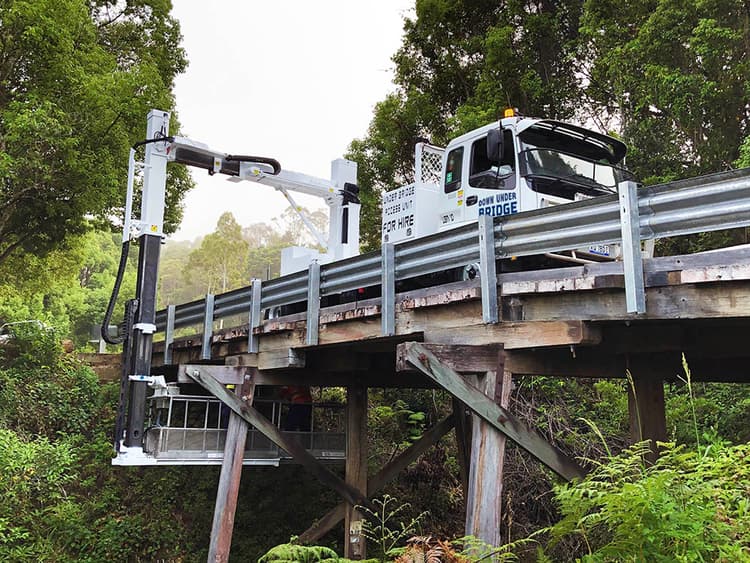

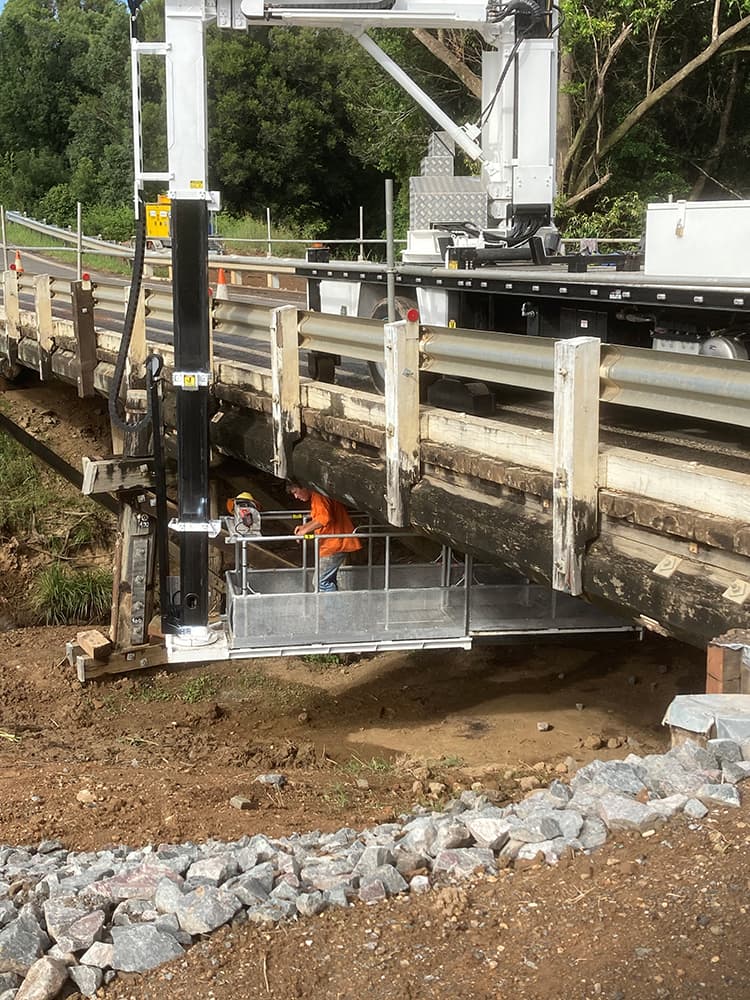

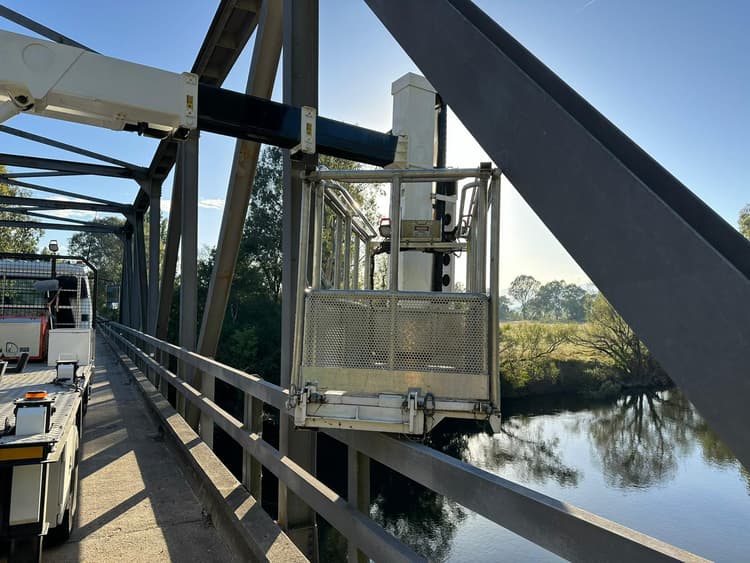

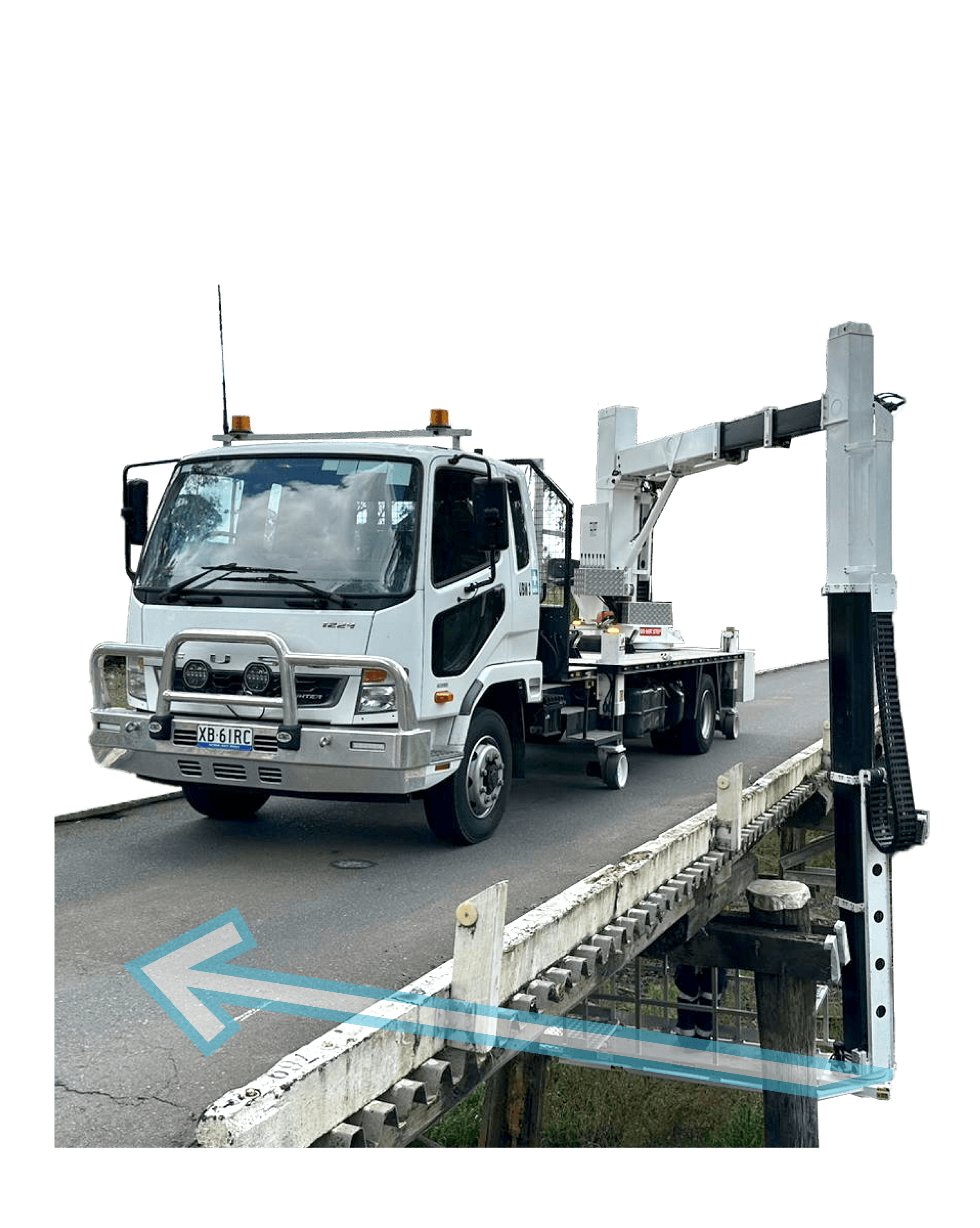

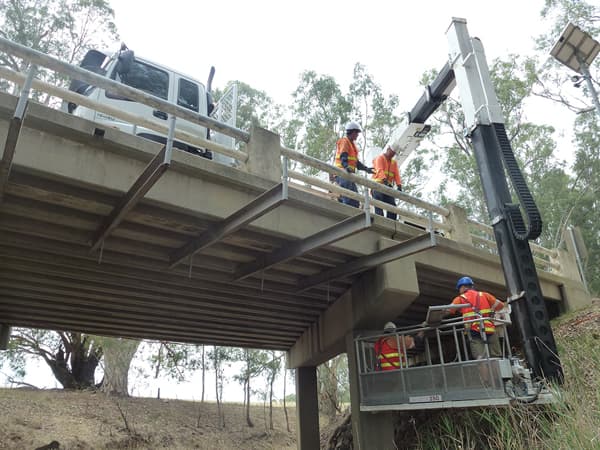

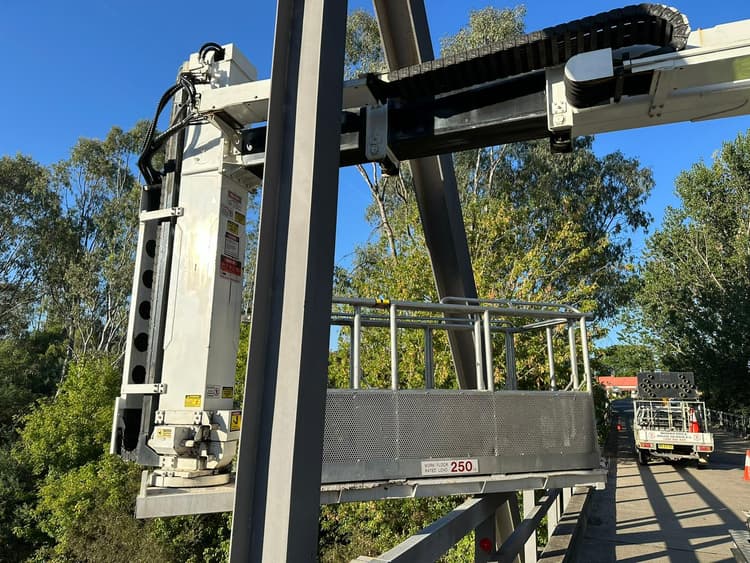

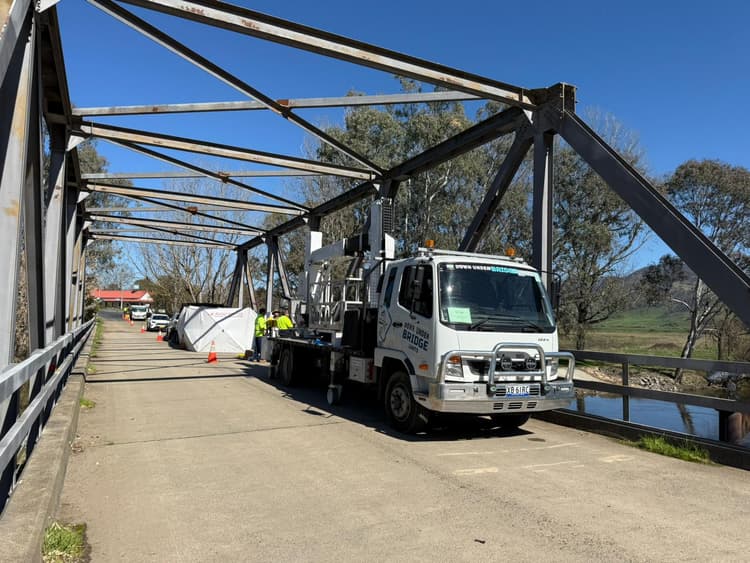

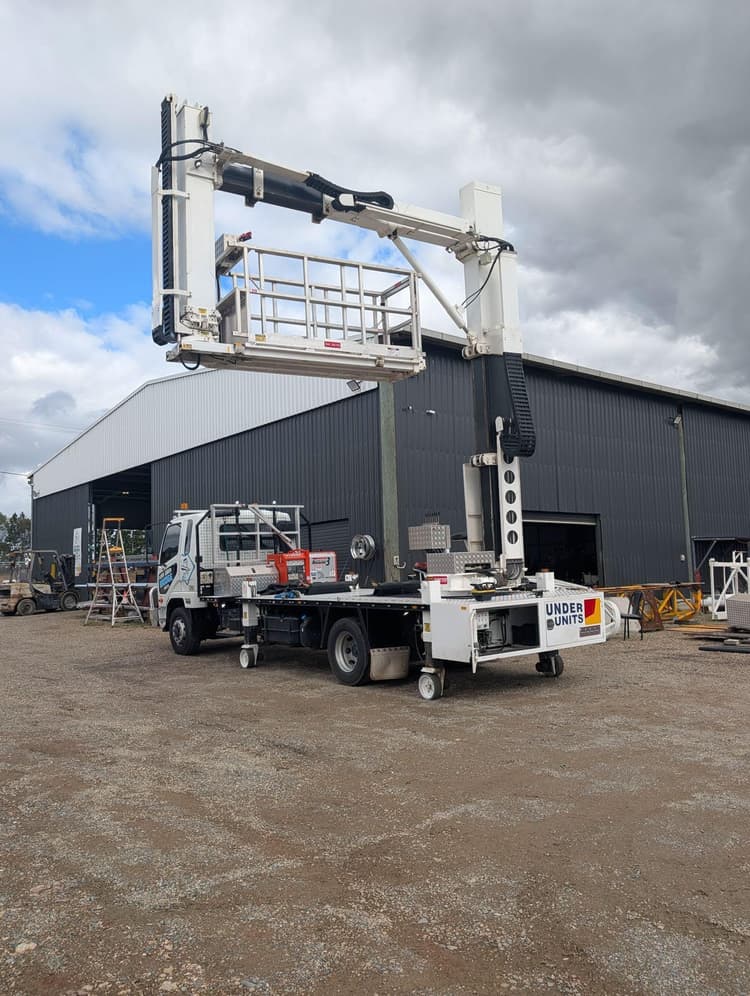

2.5m - 4.2m Aichi Truck Mounted Platform
UBM 3 & 10
Download PDF2.5m - 4.2m Aichi Truck Mounted Platform
350kg platform load

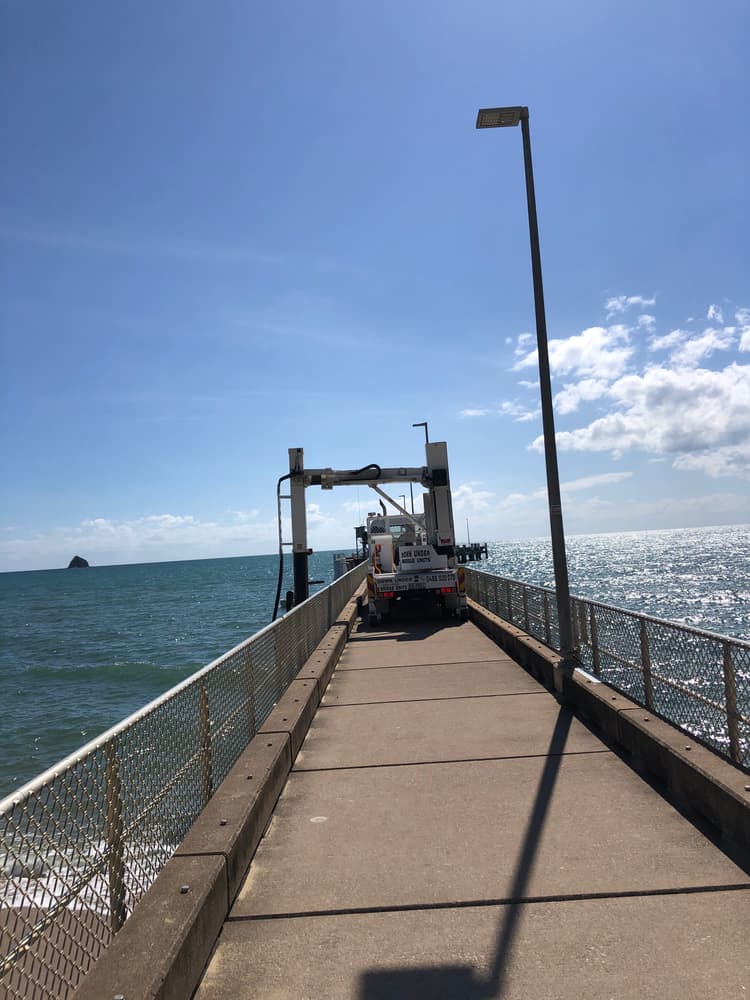

Weighing under 12 tonnes, this compact platform offers exceptional versatility without fatigue management requirements. Operators can access the platform directly from the road surface and move from one side of the bridge to the other without leaving the platform, improving safety and efficiency. Ideal for timber bridges, jetties, large traffic management signs, noise walls, and variable message sign projects, it delivers fast setup and pack-up, with a generator included at no extra cost.
Specifications
15 data points
Tower Specs
- Max Platform length under bridge
- 2.5m - 4.2 m
- Max Platform length alongside bridge
- 4.2 m
- Max lowering depth
- 4 m
- Width of platform
- 1 m
- Side walk clearance
- 2.2 m
- Hand rail / Barrier max clearance
- 4 m
- Operational footprint
- 2.3 m
- Max load at end of telescopic platform
- 120 kg
- Safe working load across platform
- 350 kg
- Rotation of platform under bridge
- 180° degrees
- Deployment side
- Left / right and rear
Truck Specs
- Traveling height (stowed)
- 3.5 m
- Traveling width
- 2.3 m
- Traveling length
- 8.5 m
- Overall weight (approx)
- 10,400 kg

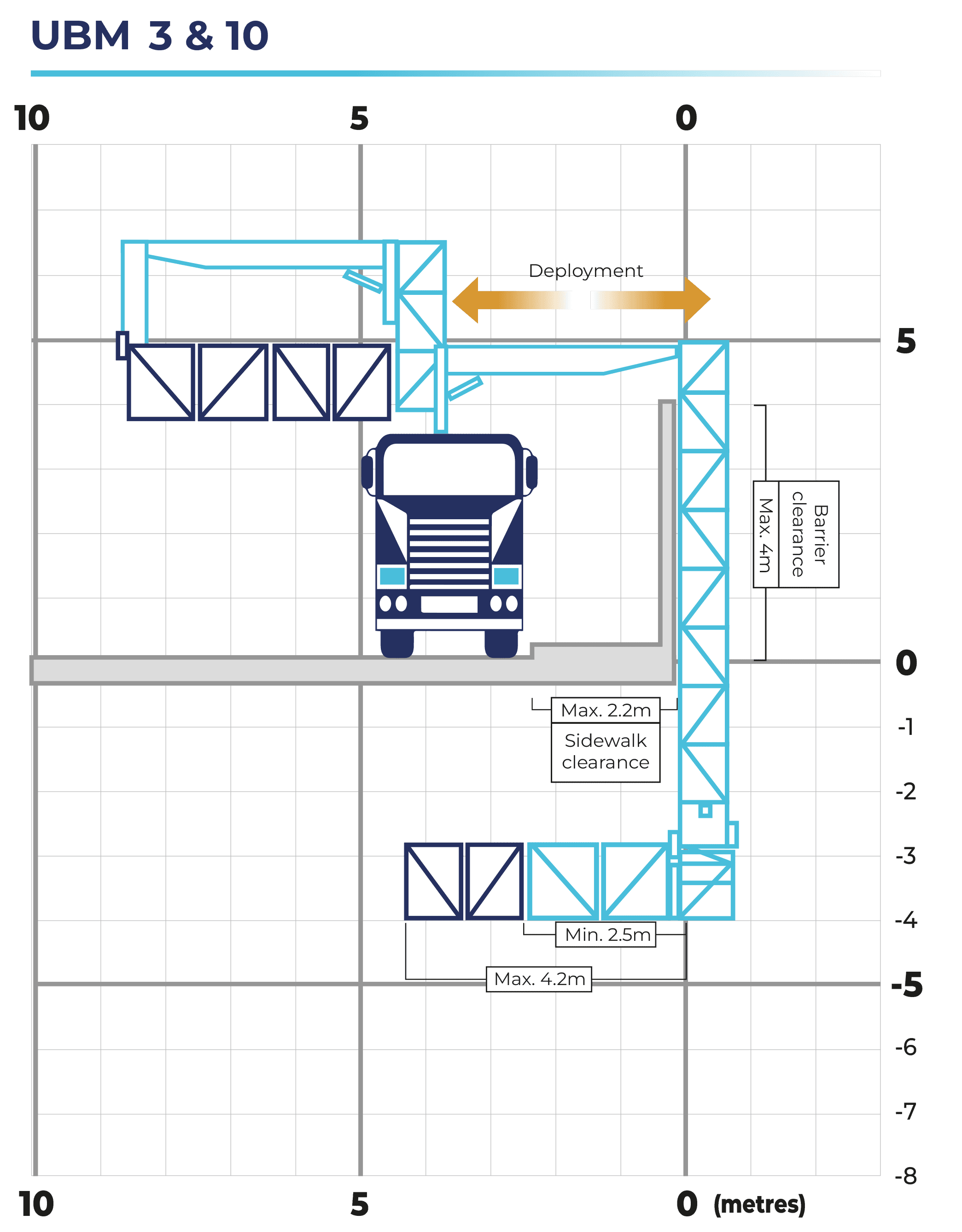

Working Envelope
Reach diagram
Additional Equipment
Equipment installed on unit available for client usage.
- Generator 6KVA (silenced) : Single-Phase
- Starlink
Wet Hire Rates
Daily rate excl GST
UBM 3 & 10Truck Mounted Platform
Across2.5 - 4.2 m
Down4 m
Up4 m
$2,392.00($299 per hr)
- Wet hire refers to Hire of Unit and our operator.Additional operators can be provided for an additional charge.Minimum hire period = 8 hours (incl travel). After 8 hours, truck hourly rate + overtime applies.Overtime = Hire over 8 continuous hours, hire on weekends and hire between the hours of 6pm – 6am.
- Overtime = "Truck hourly rate" plus $59 per hour (+ GST).Public Holiday rate = "Truck hourly rate" plus $78 per hour (+ GST).Travel is subject to overtime and public holiday rates.
- Living Away from Home Allowance per operator = $350.00 per day (+GST).
Need under bridge access?
