Under bridge unit
5m - 9m Moog Truck Mounted Platform
UBM 2
Download PDF5m - 9m Moog Truck Mounted Platform
400kg platform load
Tower is undergoing its 10 year re-certification and will be re-mounted onto a brand new truck.
Specifications
15 data points
Tower Specs
- Max Platform length under bridge
- 5m - 9 m
- Max Platform length alongside bridge
- 9 m
- Max lowering depth
- 5 m
- Width of platform
- 1 m
- Side walk clearance
- 1.9 m
- Hand rail / Barrier max clearance
- 3.2 m
- Operational footprint
- 2.5 m
- Max load at end of telescopic platform
- 200 kg
- Safe working load across platform
- 400 kg
- Rotation of platform under bridge
- 180° degrees
- Deployment side
- Left and right
Truck Specs
- Traveling height (stowed)
- 3.5 m
- Traveling width
- 2.5 m
- Traveling length
- 8 m
- Overall weight (approx)
- 15,000 kg

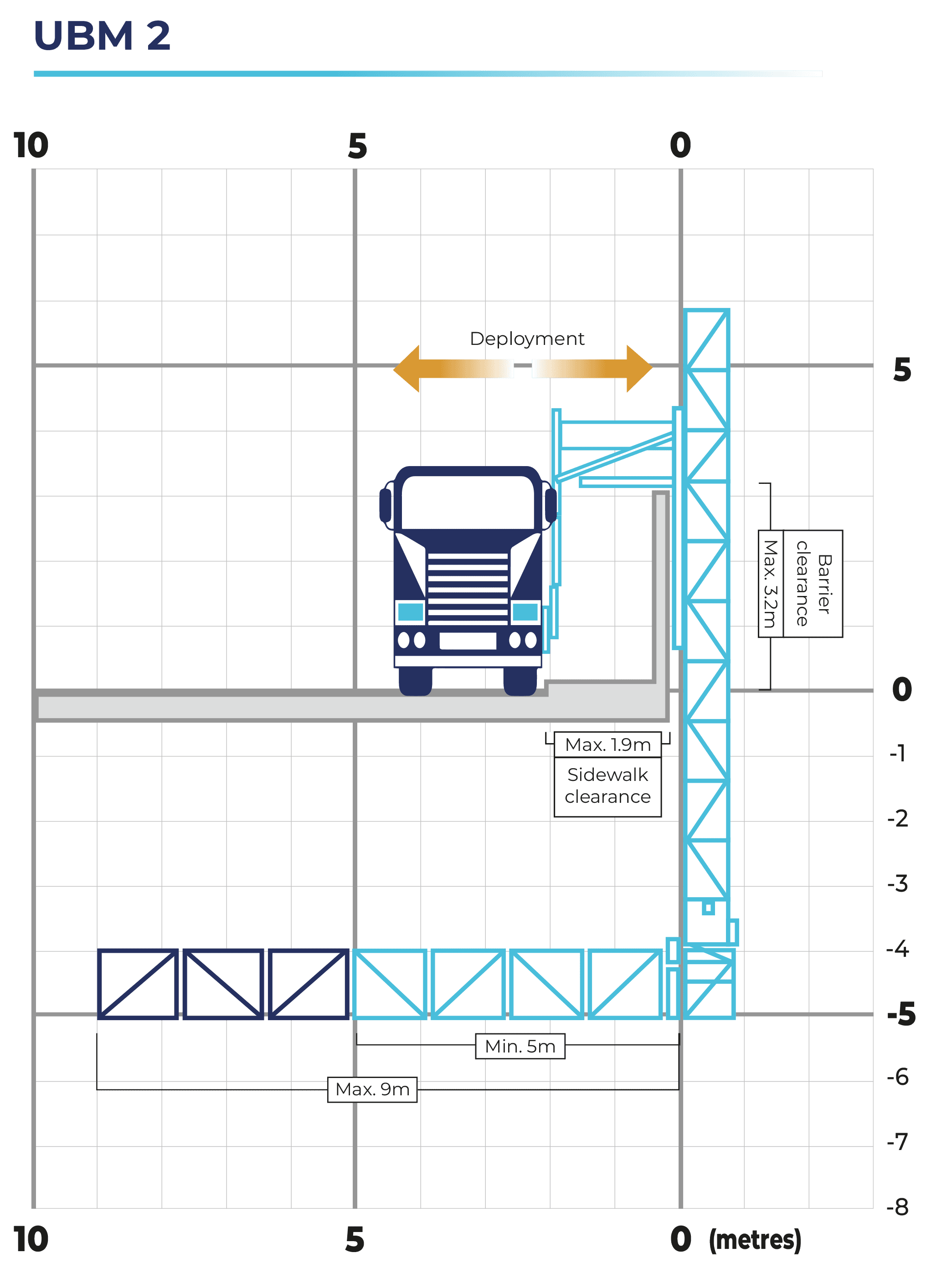

Working Envelope
Reach diagram
Additional Equipment
Equipment installed on unit available for client usage.
- Generator 6KVA (silenced) : Single-Phase
- Screw Compressor 100CFM
- Pressure Cleaner 3500psi
- Water Tank - Capacity to carry 2000L
- Starlink
Wet Hire Rates
Daily rate excl GST
UBM 2Truck Mounted Platform
Across5 - 9 m
Down5 m
Up0 m
$2,392.00($299 per hr)
- Wet hire refers to Hire of Unit and our operator.Additional operators can be provided for an additional charge.Minimum hire period = 8 hours (incl travel). After 8 hours, truck hourly rate + overtime applies.Overtime = Hire over 8 continuous hours, hire on weekends and hire between the hours of 6pm – 6am.
- Overtime = "Truck hourly rate" plus $59 per hour (+ GST).Public Holiday rate = "Truck hourly rate" plus $78 per hour (+ GST).Travel is subject to overtime and public holiday rates.
- Living Away from Home Allowance per operator = $350.00 per day (+GST).
