Under bridge unit

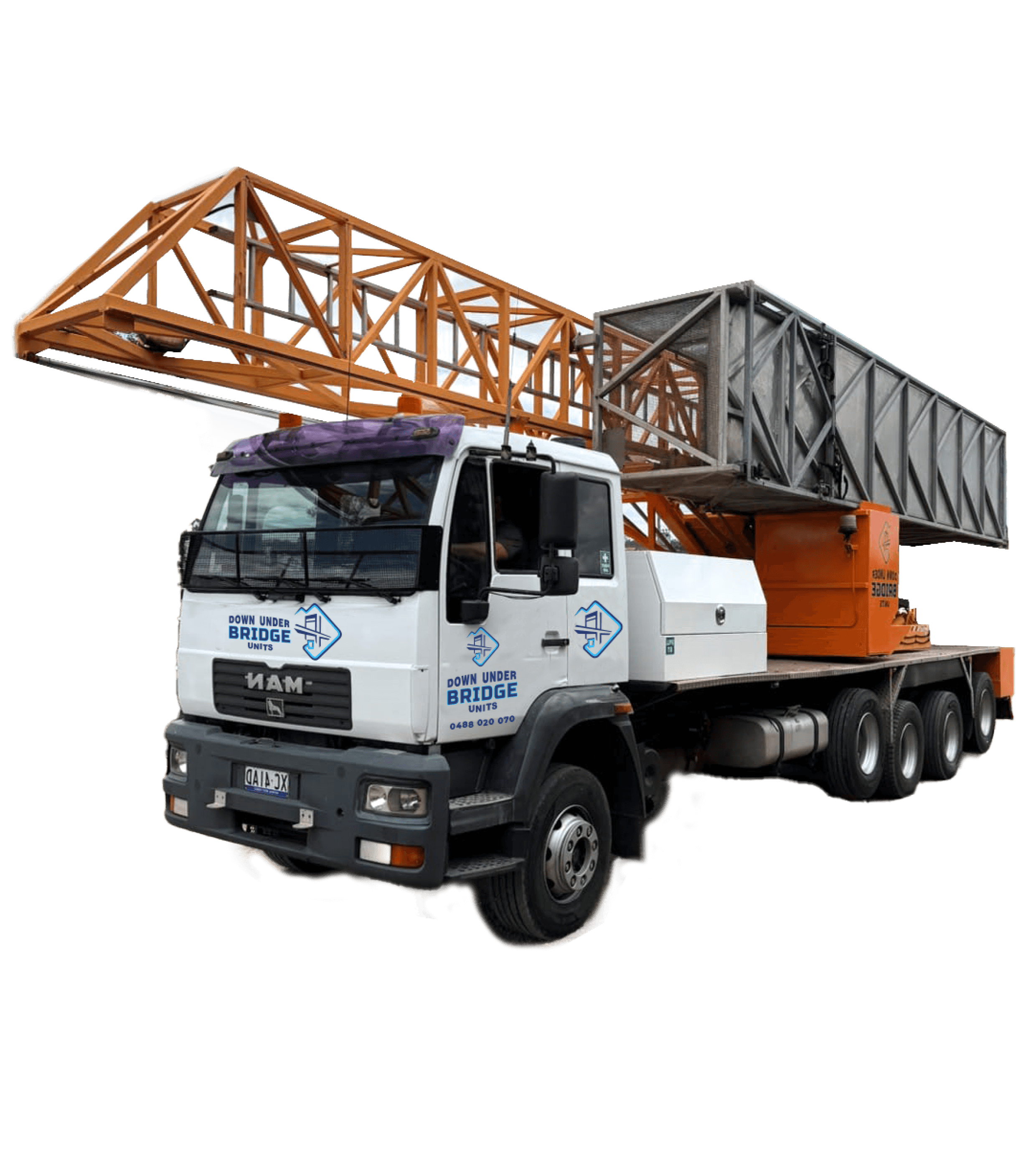

8m - 18m Moog Truck Mounted Platform
UBM 14
Download PDF8m - 18m Moog Truck Mounted Platform
600kg platform load

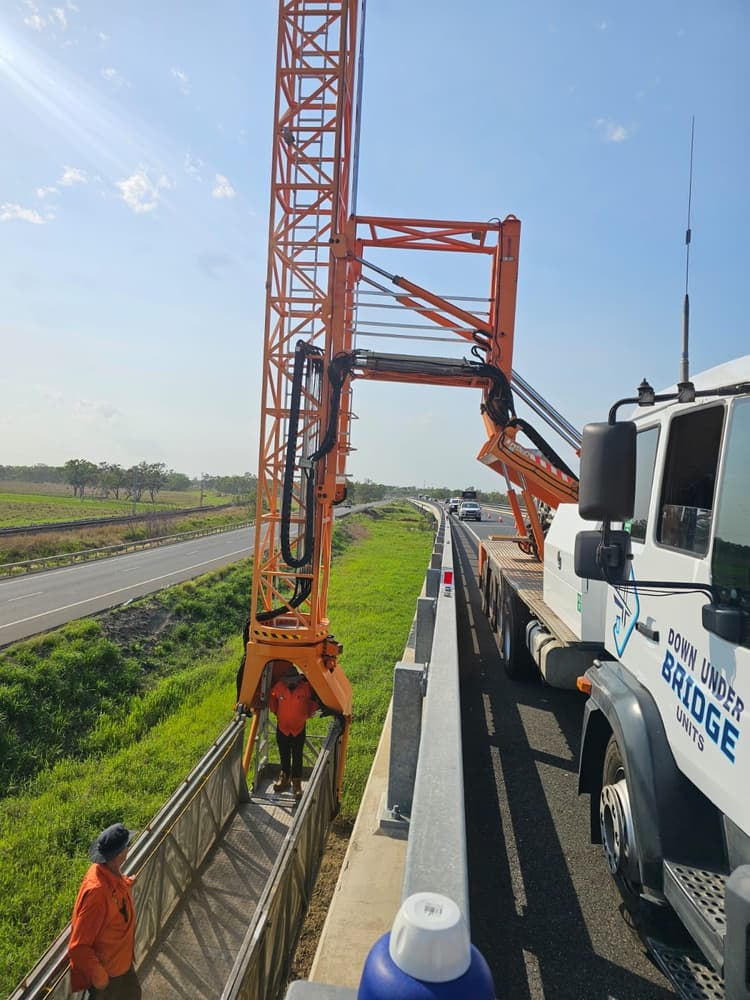

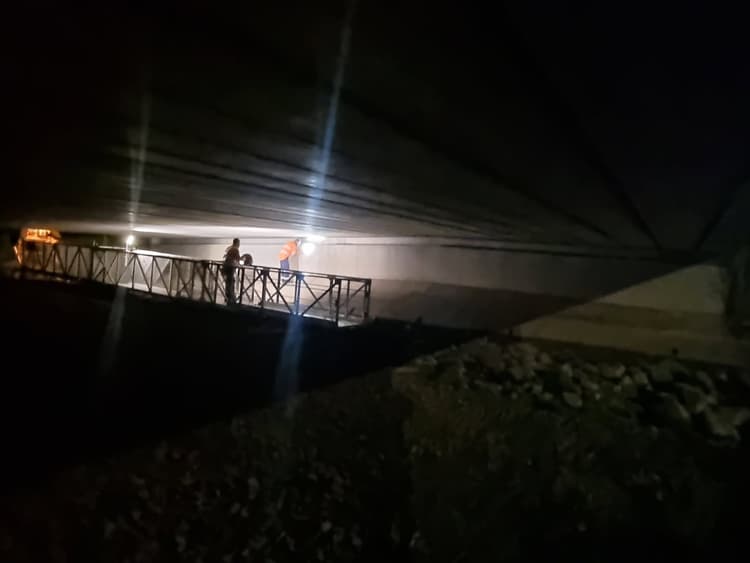

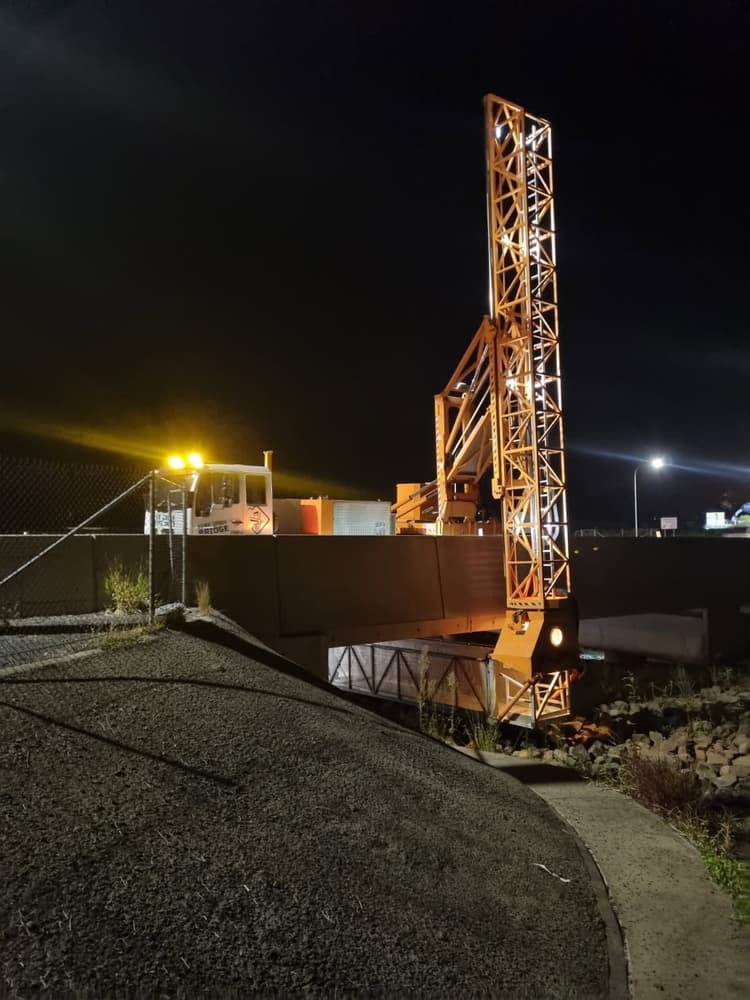

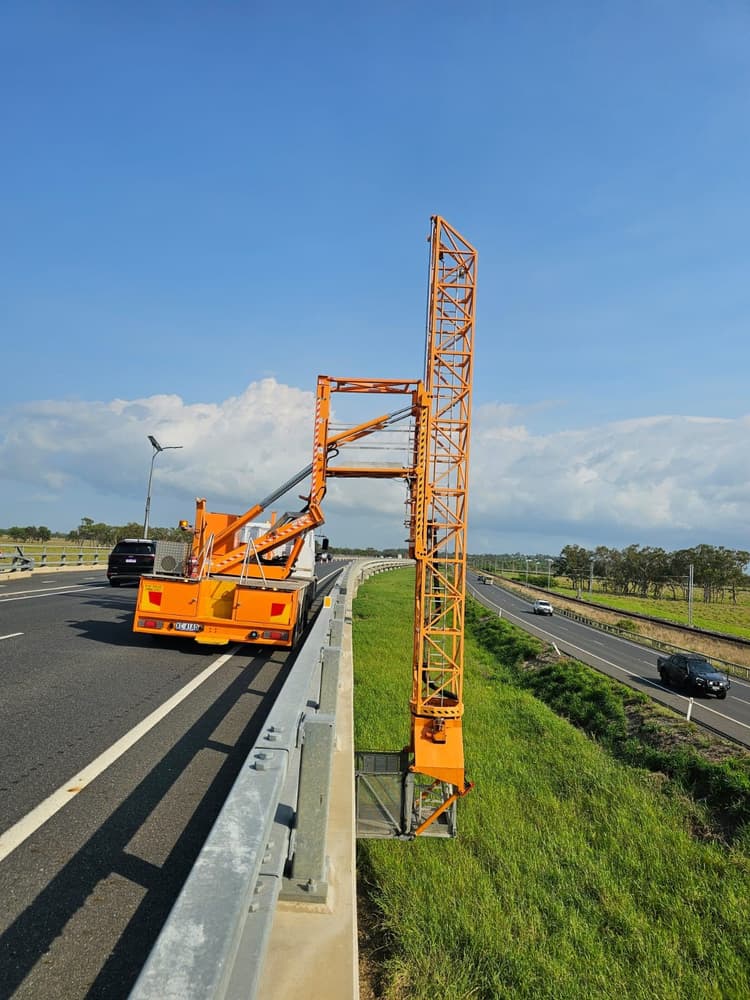

The 18m platform is designed for larger bridges and wharves, delivering safe, efficient access where it’s needed most. Ideal for rehabilitation works, as well as inspections and investigations on bridges, wharves, and jetties, it accommodates up to four operators and is built for productivity on complex sites. It also provides extended reach for wider multi-lane bridges, making it easier to access central components that are otherwise difficult to reach.
Specifications
15 data points
Tower Specs
- Max Platform length under bridge
- 8m - 18 m
- Max Platform length alongside bridge
- 9 m
- Max lowering depth
- 9.5 m
- Width of platform
- 1.4 m
- Side walk clearance
- 2.3 m
- Hand rail / Barrier max clearance
- 2.9 m
- Operational footprint
- 2.5 m
- Max load on far end of platform
- 300 kg
- Max load across platform
- 600 kg
- Rotation of platform under bridge
- 180° degrees
- Deployment side
- Left and right
Truck Specs
- Traveling height (stowed)
- 3.5 m
- Traveling width
- 2.5 m
- Traveling length
- 12 m
- Overall weight (approx)
- 23,000 kg

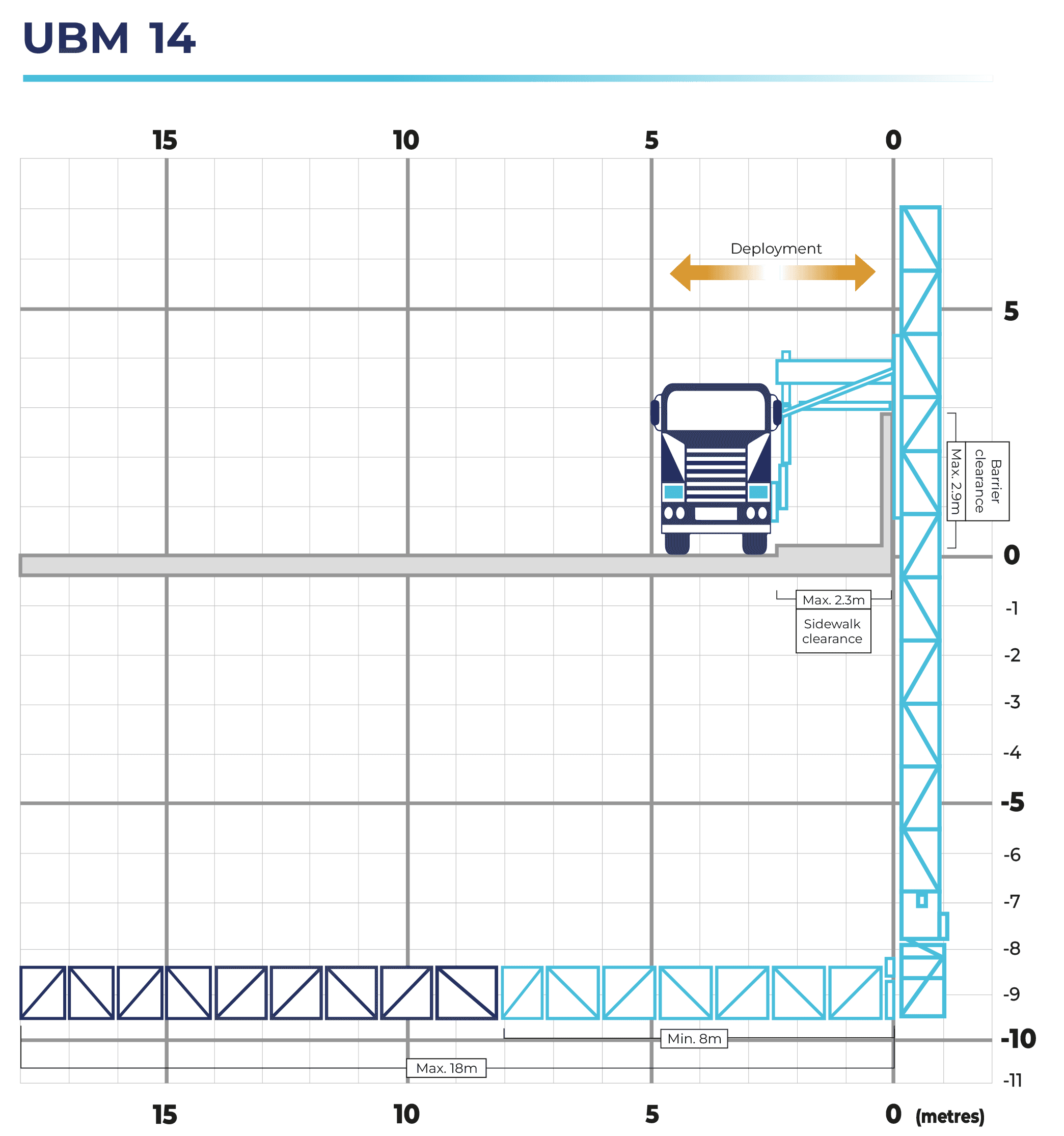

Working Envelope
Reach diagram
Additional Equipment
Equipment installed on unit available for client usage.
- Starlink
Wet Hire Rates
Daily rate excl GST
UBM 14Truck Mounted Platform
Across8 - 18 m
Down9.5 m
Up0 m
$3,000.00($375 per hr)
- Wet hire refers to Hire of Unit and our operator.Additional operators can be provided for an additional charge.Minimum hire period = 8 hours (incl travel). After 8 hours, truck hourly rate + overtime applies.Overtime = Hire over 8 continuous hours, hire on weekends and hire between the hours of 6pm – 6am.
- Overtime = "Truck hourly rate" plus $59 per hour (+ GST).Public Holiday rate = "Truck hourly rate" plus $78 per hour (+ GST).Travel is subject to overtime and public holiday rates.
- Living Away from Home Allowance per operator = $350.00 per day (+GST).
Need under bridge access?
