Under bridge unit
7m - 9m Barin Truck Mounted Platform
UBM 12 & 15
Download PDF7m - 9m Barin Truck Mounted Platform
400kg platform load

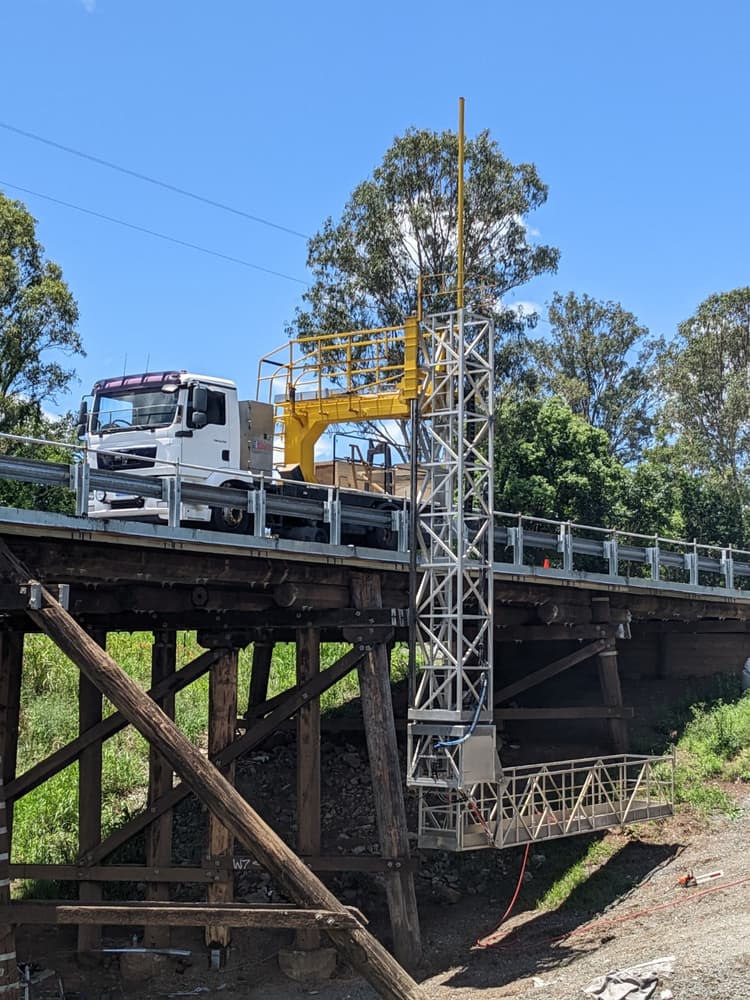

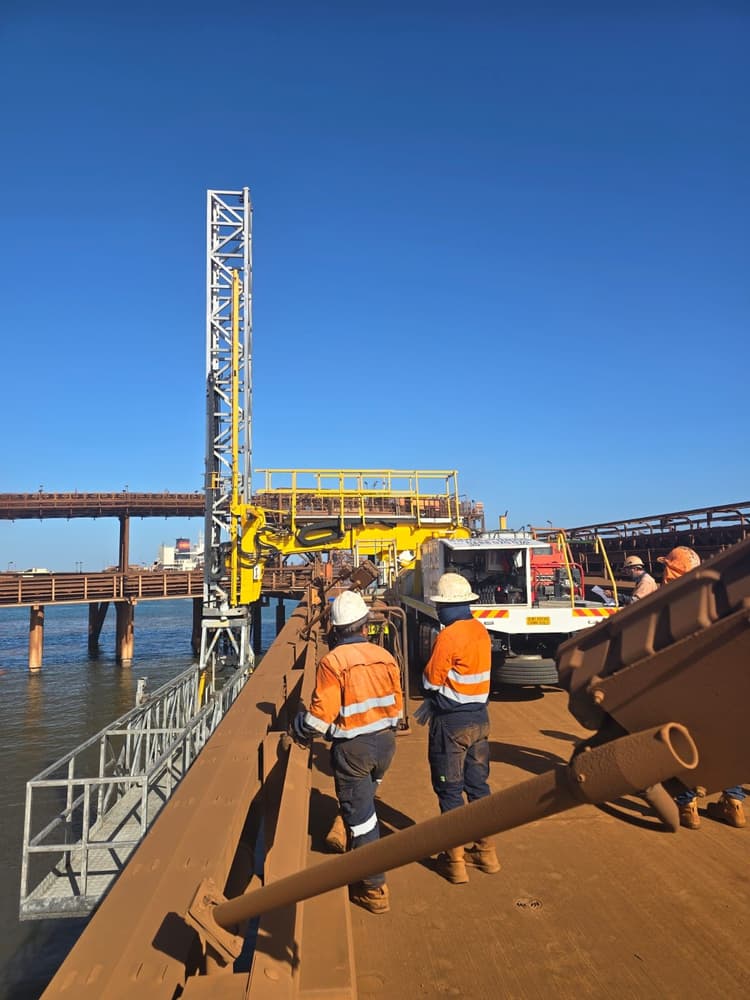

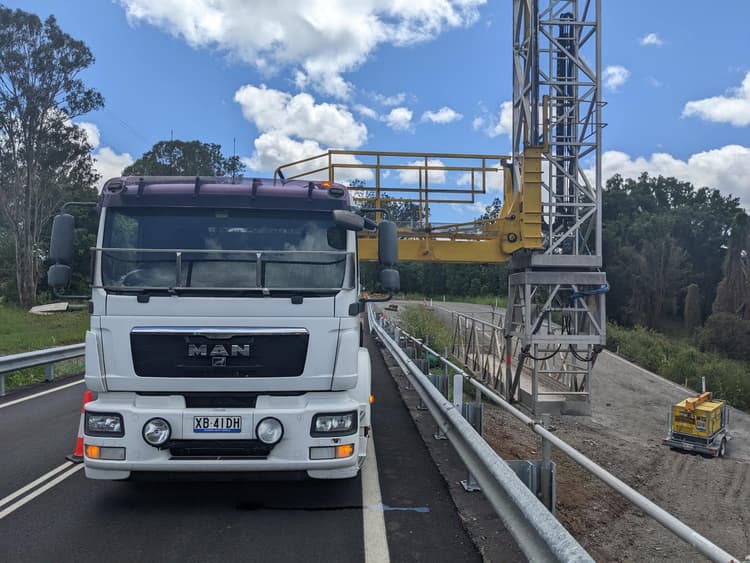

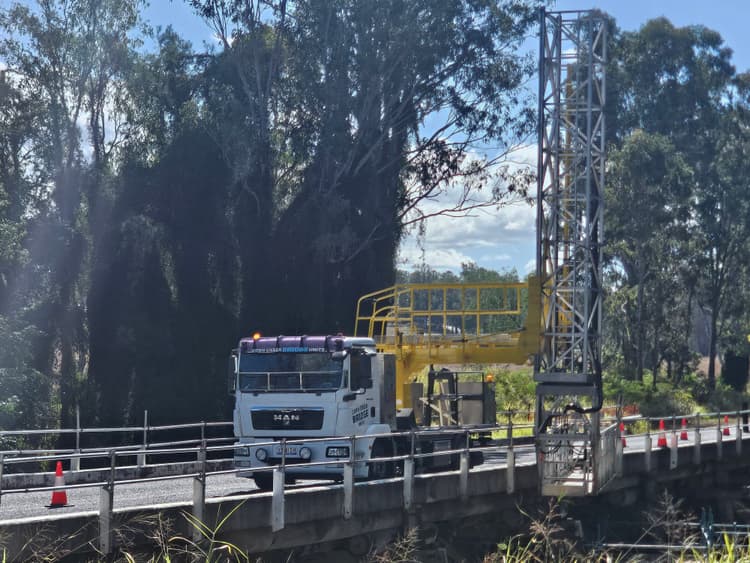

9m platform with a huge 2.2m sidewalk and barrier clearance. This truck’s platform can be brought to ground level which makes it invaluable for safely working on handrails & barriers.
Specifications
15 data points
Tower Specs
- Max Platform length under bridge
- 7m - 9 m
- Max Platform length alongside bridge
- 9 m
- Max lowering depth
- 5.1 m
- Width of platform
- 1.2 m
- Side walk clearance
- 2.2 m
- Hand rail / Barrier max clearance
- 2.2 m
- Operational footprint
- 2.5 m
- Max load at end of telescopic platform
- 150 kg
- Safe working load across platform
- 400 kg
- Rotation of platform under bridge
- 180° degrees
- Deployment side
- Left only
Truck Specs
- Traveling height (stowed)
- 3.5 m
- Traveling width
- 2.5 m
- Traveling length
- 10.5 m
- Overall weight (approx)
- 10,600 kg

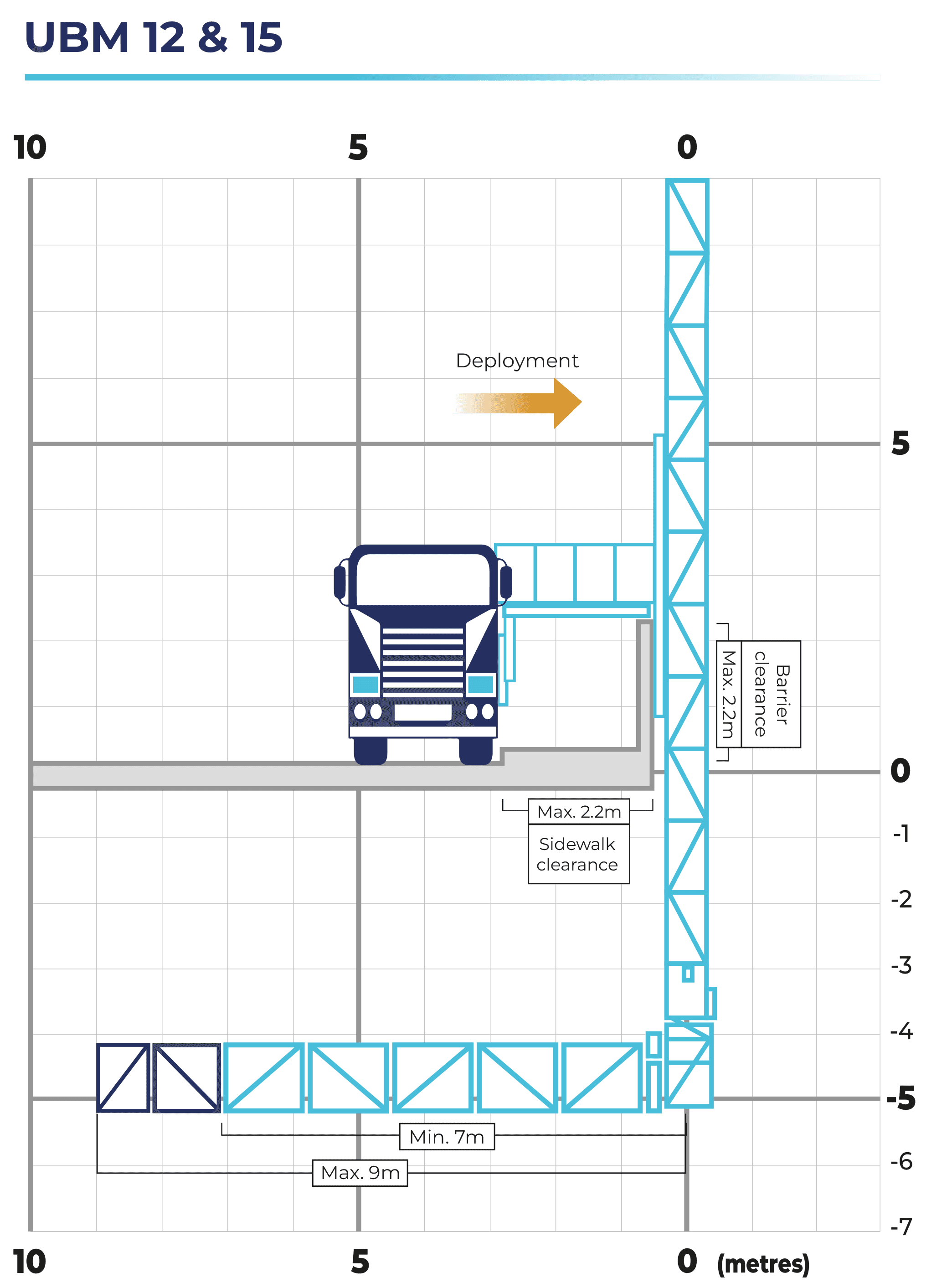

Working Envelope
Reach diagram
Additional Equipment
Equipment installed on unit available for client usage.
- Generator 6KVA : Single-Phase
- Starlink
Wet Hire Rates
Daily rate excl GST
UBM 12 & 15Truck Mounted Platform
Across7 - 9 m
Down5.1 m
Up0 m
$2,600.00($325 per hr)
- Wet hire refers to Hire of Unit and our operator.Additional operators can be provided for an additional charge.Minimum hire period = 8 hours (incl travel). After 8 hours, truck hourly rate + overtime applies.Overtime = Hire over 8 continuous hours, hire on weekends and hire between the hours of 6pm – 6am.
- Overtime = "Truck hourly rate" plus $59 per hour (+ GST).Public Holiday rate = "Truck hourly rate" plus $78 per hour (+ GST).Travel is subject to overtime and public holiday rates.
- Living Away from Home Allowance per operator = $350.00 per day (+GST).
Need under bridge access?
