Under bridge unit

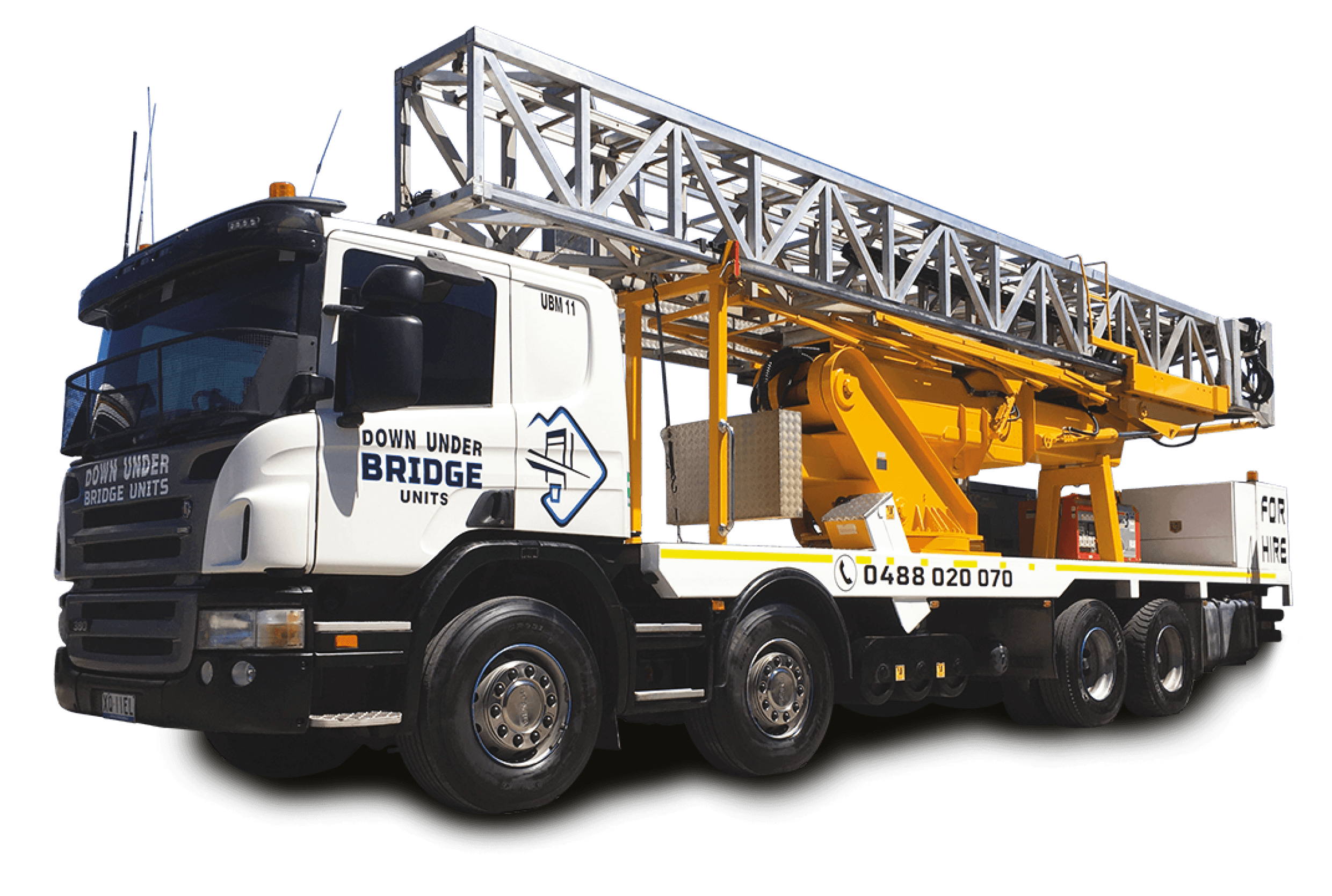

7m - 13m Barin Truck Mounted Platform
UBM 11
Download PDF7m - 13m Barin Truck Mounted Platform
500kg platform load

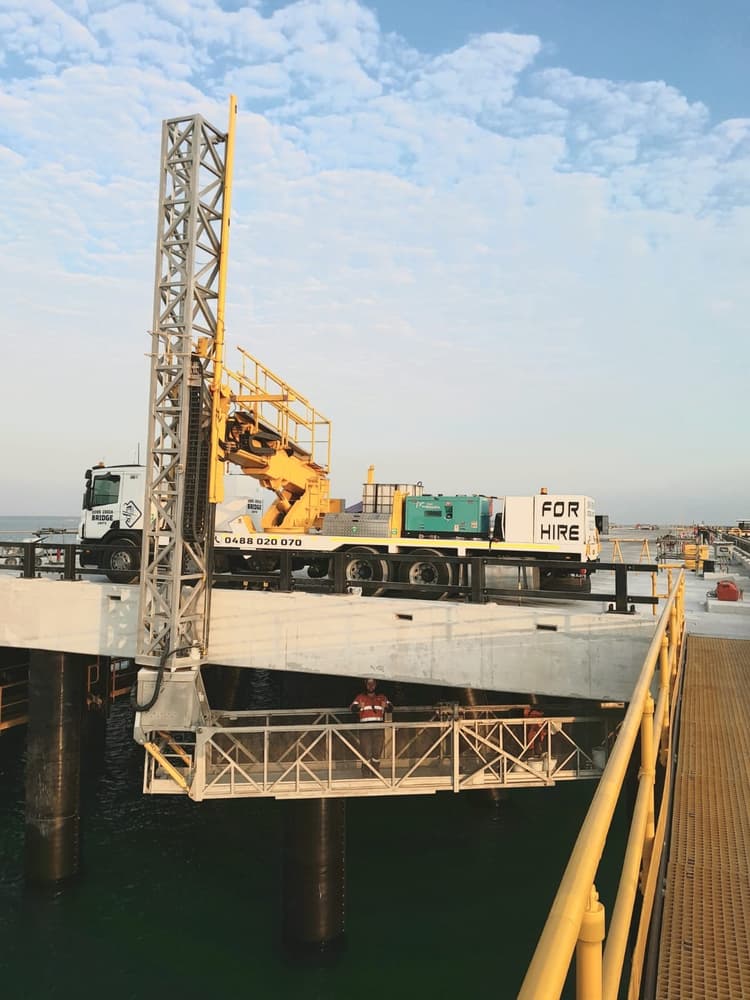

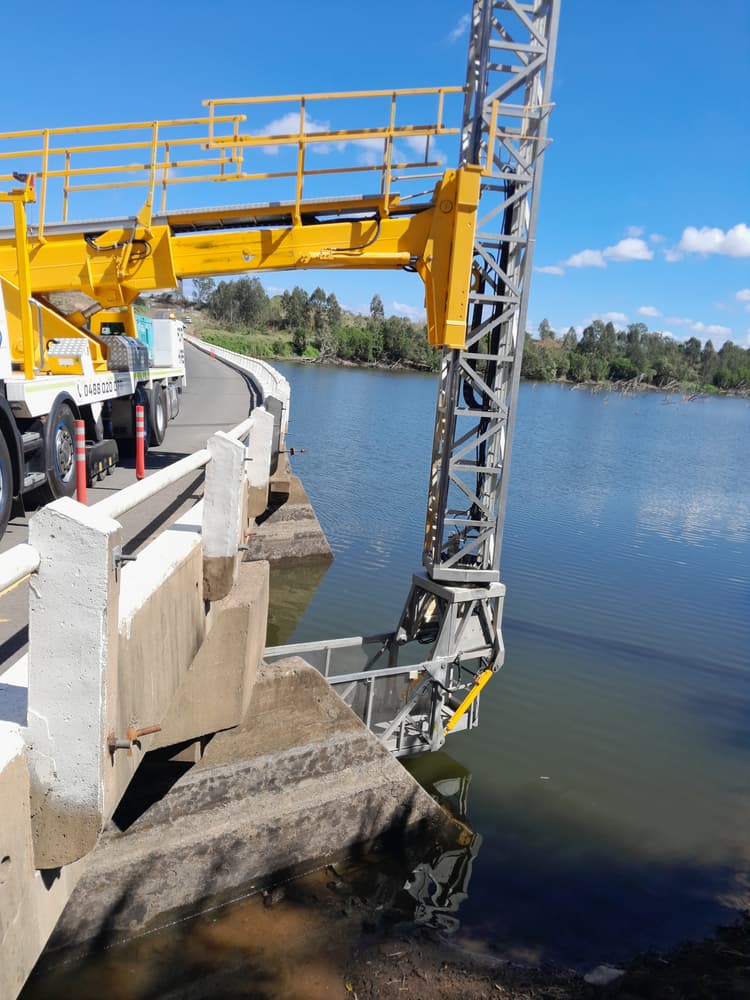

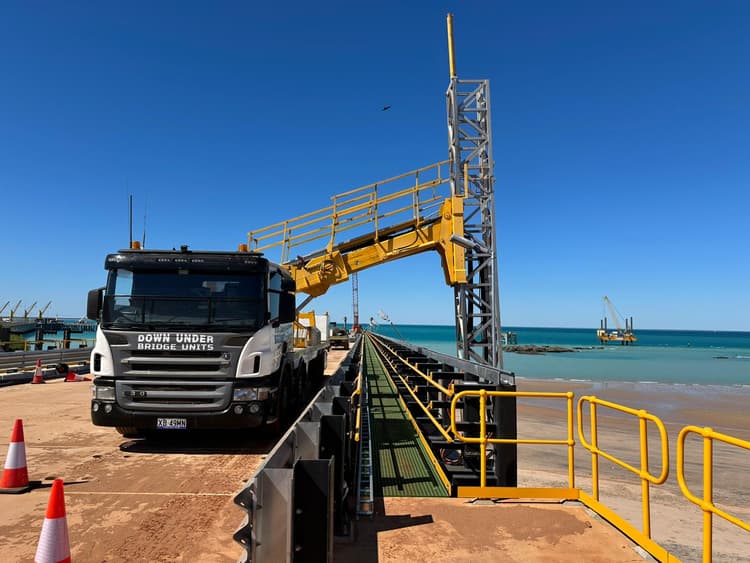

Designed to clear wide footpaths and noise walls on bridges, this work platform delivers safe, efficient access for rehabilitation works, as well as inspections and investigations on bridges, wharves, and jetties. It accommodates up to four operators and allows access from one side of most two-lane bridges without the need for lane changes, helping reduce disruption on site. A generator, screw compressor, pressure washer, and water pods are included at no extra cost, making it fully equipped for demanding projects.
Specifications
15 data points
Tower Specs
- Max Platform length under bridge
- 7m - 13 m
- Max Platform length alongside bridge
- 9.5 m
- Max lowering depth
- 8.4 m
- Width of platform
- 1.2 m
- Side walk clearance
- 4.3 m
- Hand rail / Barrier max clearance
- 3.8 m
- Operational footprint
- 2.5 m
- Max load at end of telescopic platform
- 150 kg
- Safe working load across platform
- 500 kg
- Rotation of platform under bridge
- 180° degrees
- Deployment side
- Left only
Truck Specs
- Traveling height (stowed)
- 3.5 m
- Traveling width
- 2.5 m
- Traveling length
- 11.7 m
- Overall weight (approx)
- 26,000 kg

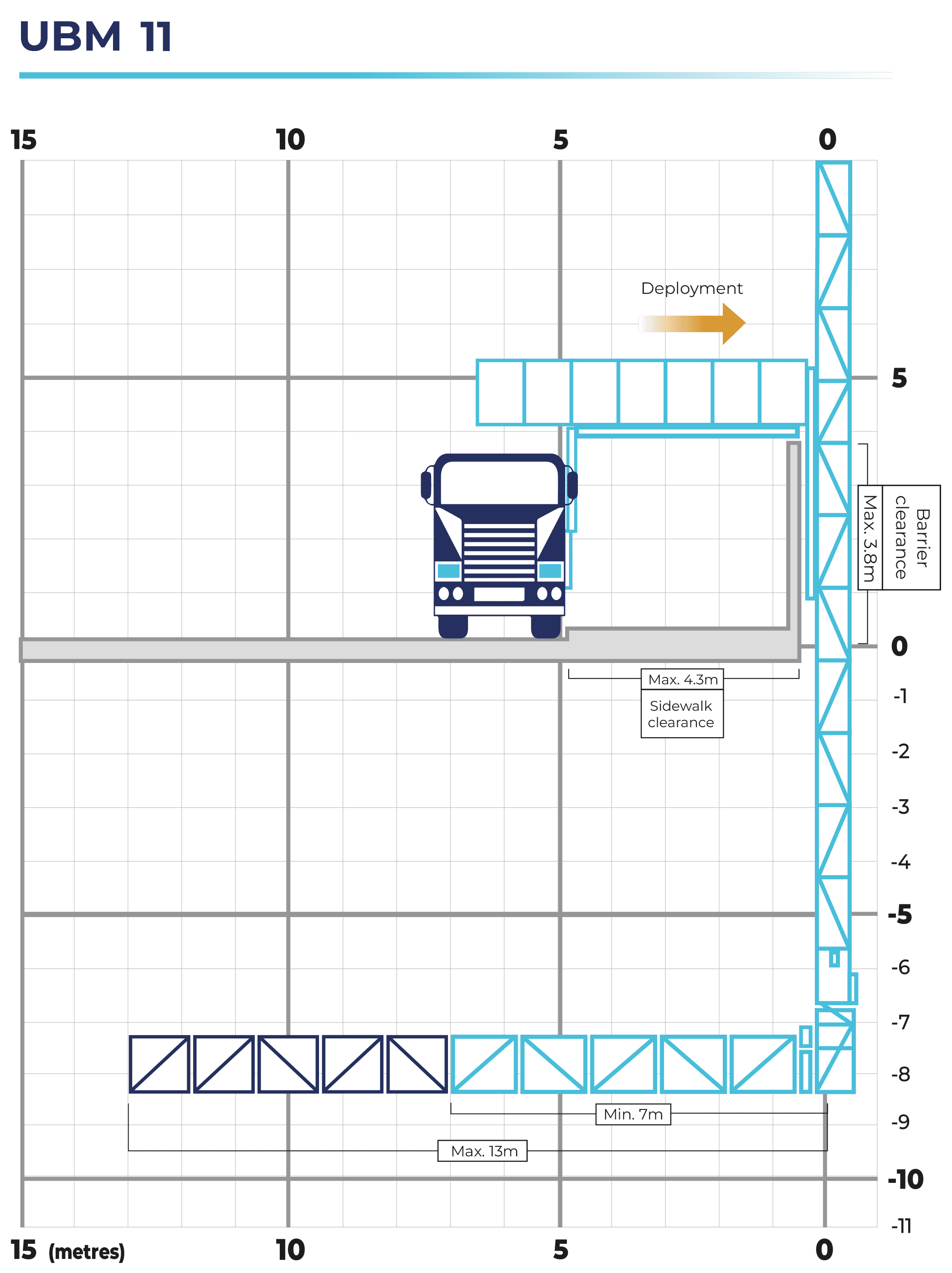

Working Envelope
Reach diagram
Additional Equipment
Equipment installed on unit available for client usage.
- Generator 18KVA : Three-Phase
- Screw Compressor 100CFM
- Pressure Cleaner 3500psi
- Water Tank - Capacity to carry 1000L
- Starlink
Wet Hire Rates
Daily rate excl GST
UBM 11Truck Mounted Platform
Across7 - 13 m
Down8.4 m
Up0 m
$2,808.00($351 per hr)
- Wet hire refers to Hire of Unit and our operator.Additional operators can be provided for an additional charge.Minimum hire period = 8 hours (incl travel). After 8 hours, truck hourly rate + overtime applies.Overtime = Hire over 8 continuous hours, hire on weekends and hire between the hours of 6pm – 6am.
- Overtime = "Truck hourly rate" plus $59 per hour (+ GST).Public Holiday rate = "Truck hourly rate" plus $78 per hour (+ GST).Travel is subject to overtime and public holiday rates.
- Living Away from Home Allowance per operator = $350.00 per day (+GST).
