Under bridge unit

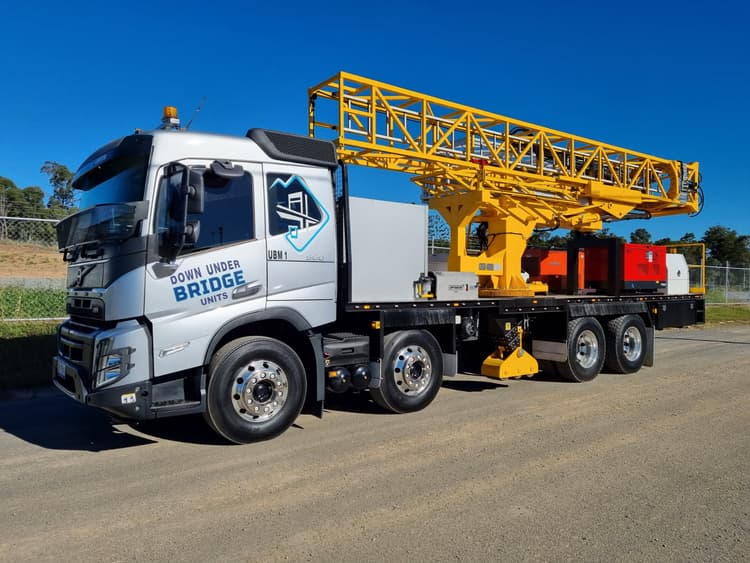

7m - 11.5m Barin Truck Mounted Platform
UBM 1
Download PDF7m - 11.5m Barin Truck Mounted Platform
500kg platform load

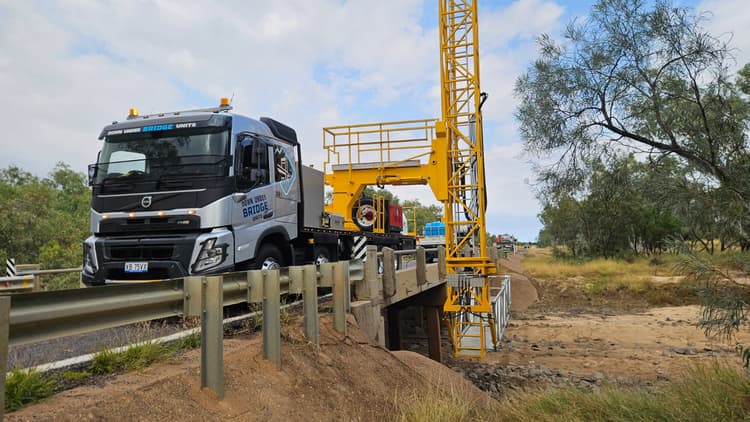

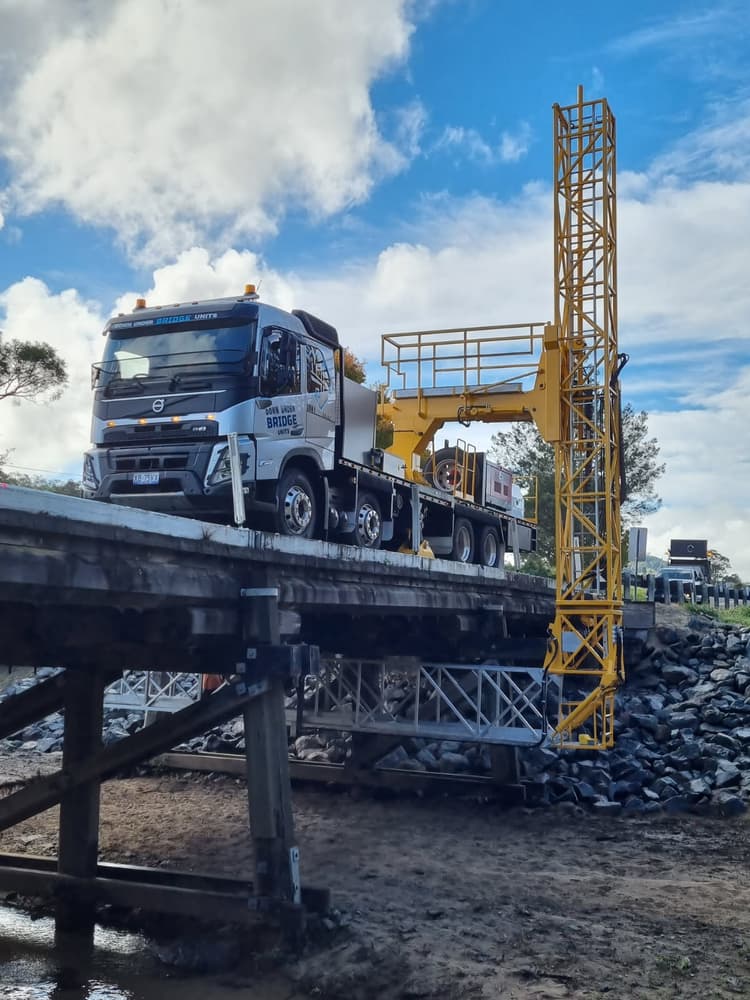

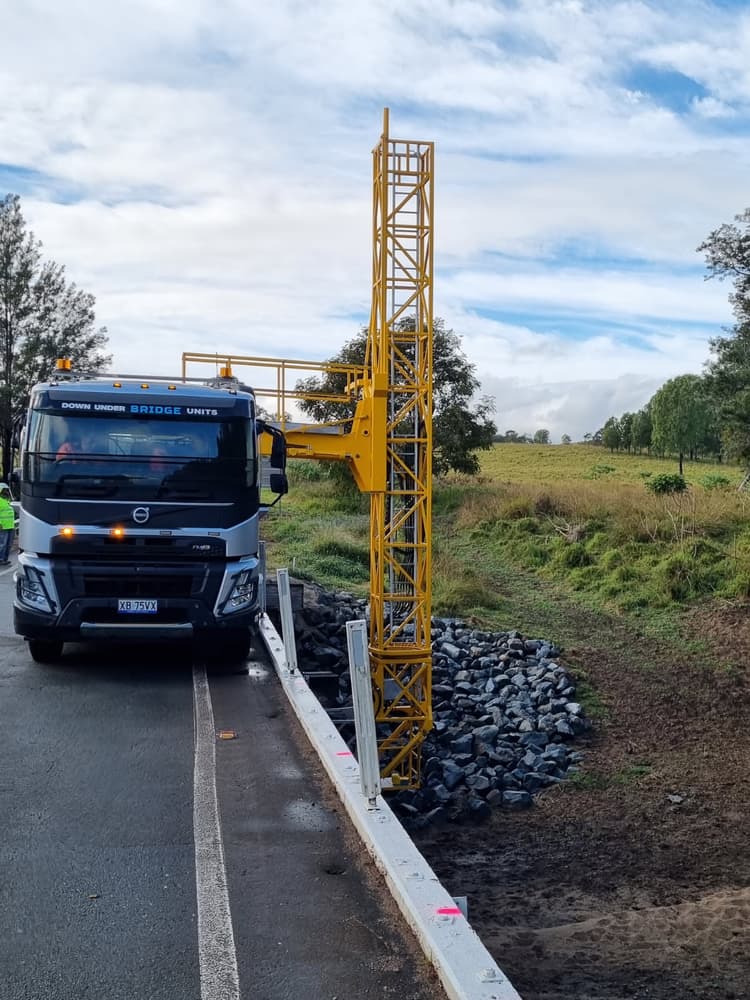

Designed to provide safe, stable access beneath structures, this versatile work platform accommodates up to four operators and is ideal for inspections, maintenance, rehabilitation, and concrete or steel repair projects. Perfect for bridges, wharves, and jetties, it features fast setup and pack-up to maximise productivity. A generator, screw compressor, pressure washer, and water pods are all included at no extra cost, giving you everything you need to get the job done.
Specifications
15 data points
Tower Specs
- Max Platform length under bridge
- 7m - 11.5 m
- Max Platform length alongside bridge
- 7m - 11.5 m
- Max lowering depth
- 6 m
- Width of platform
- 1 m
- Side walk clearance
- 2 m
- Hand rail / Barrier max clearance
- 2.3 m
- Operational footprint
- 2.5 m
- Max load at end of telescopic platform
- 120 kg
- Safe working load across platform
- 500 kg
- Rotation of platform under bridge
- 180° degrees
- Deployment side
- Left only
Truck Specs
- Traveling height (stowed)
- 3.5 m
- Traveling width
- 2.5 m
- Traveling length
- 11.3 m
- Overall weight (approx)
- 20,000 kg

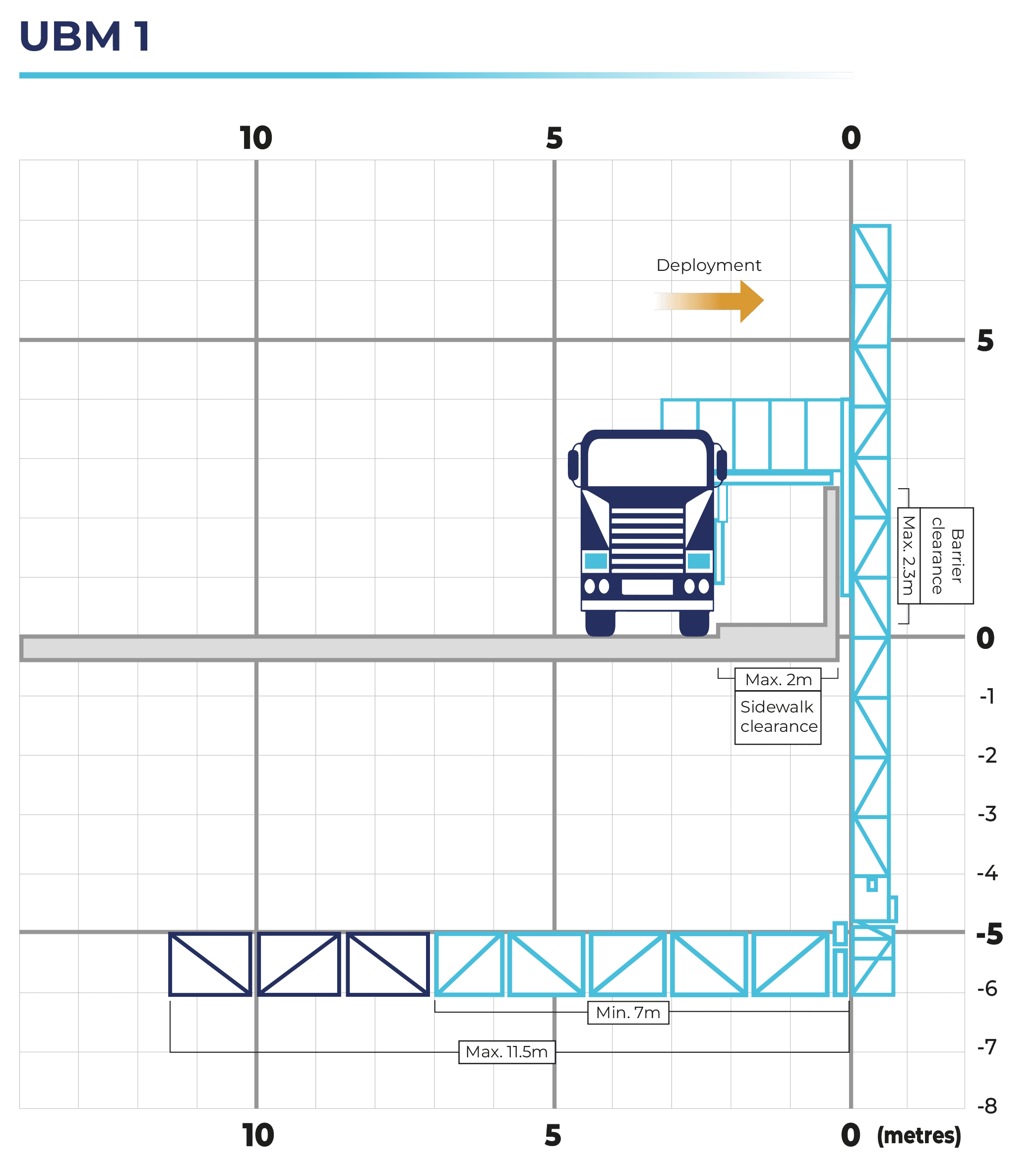

Working Envelope
Reach diagram
Additional Equipment
Equipment installed on unit available for client usage.
- 3-phase 18KVA Generator
- Screw Compressor 100CFM
- Electric Pressure Cleaner 3200psi
- Water Tank - Capacity to carry 2000L
- Starlink
Wet Hire Rates
Daily rate excl GST
UBM 1Truck Mounted Platform
Across7 - 11.5 m
Down6 m
Up0 m
$2,808.00($351 per hr)
- Wet hire refers to Hire of Unit and our operator.Additional operators can be provided for an additional charge.Minimum hire period = 8 hours (incl travel). After 8 hours, truck hourly rate + overtime applies.Overtime = Hire over 8 continuous hours, hire on weekends and hire between the hours of 6pm – 6am.
- Overtime = "Truck hourly rate" plus $59 per hour (+ GST).Public Holiday rate = "Truck hourly rate" plus $78 per hour (+ GST).Travel is subject to overtime and public holiday rates.
- Living Away from Home Allowance per operator = $350.00 per day (+GST).
Need under bridge access?
