Under bridge unit

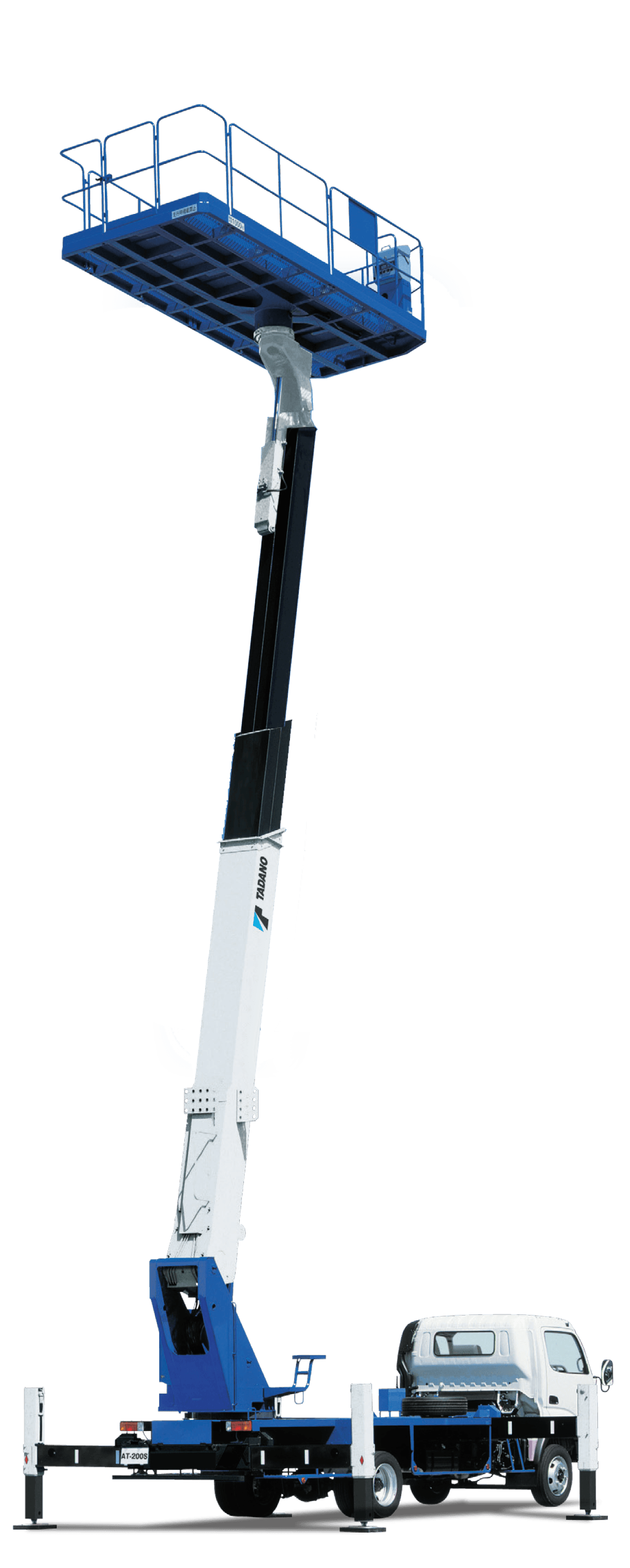

19m Tadano Aerial Work Platform
UBI 4
Download PDF19m Tadano Aerial Work Platform
1000kg working load

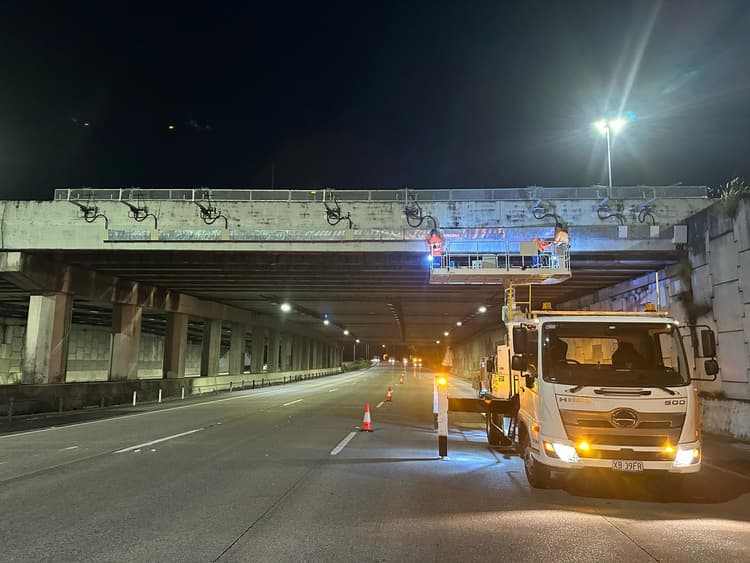

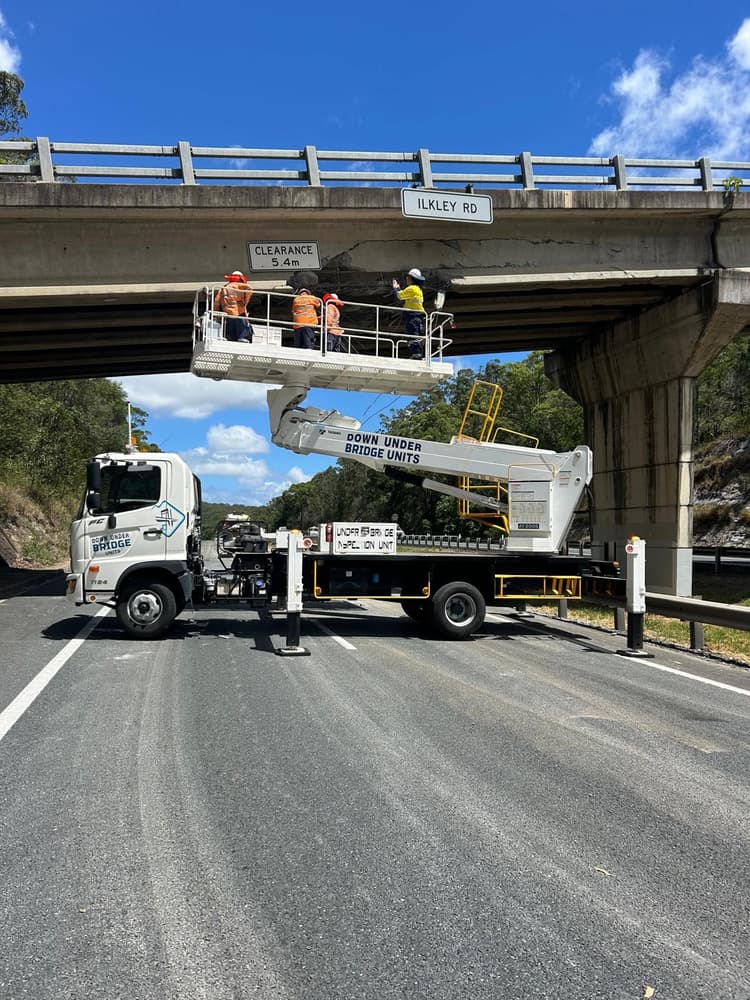

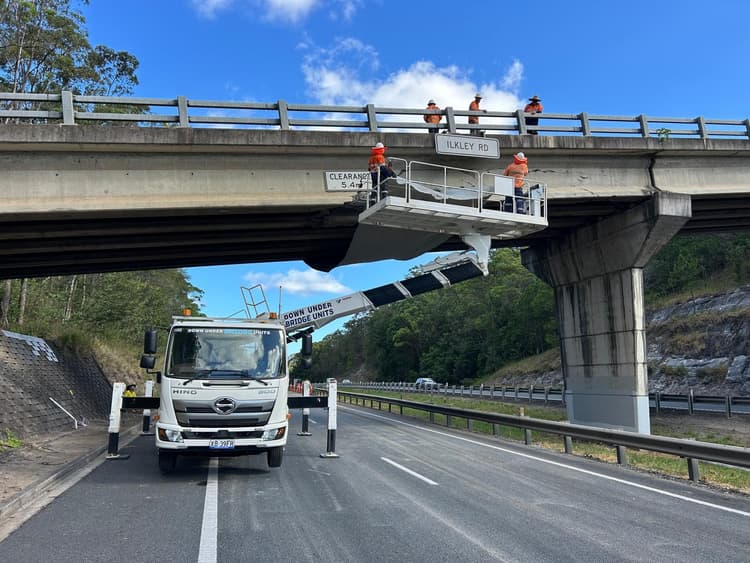

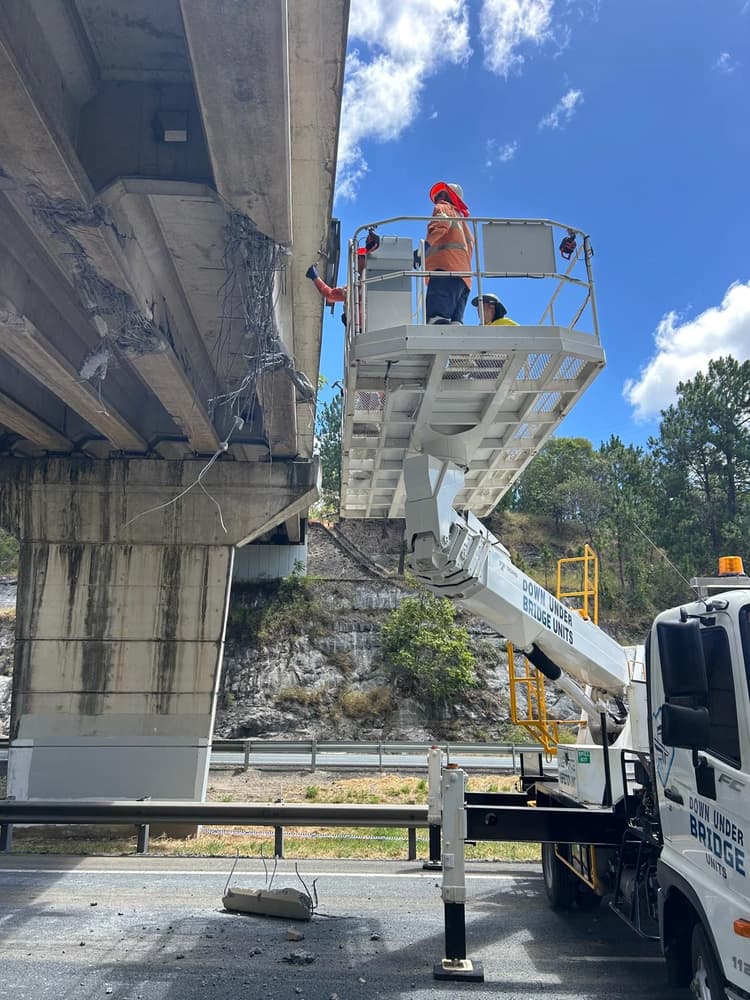

Designed for efficient access and dependable performance, this platform makes maintenance on overpass, large traffic management signs, variable message signs, and noise wall inspections a breeze. With a huge 4.6m x 1.9m deck and a 1-tonne capacity, it provides ample space and strength for investigating and repairing overpass bridge strikes, as well as carrying out general maintenance and repair work. Built for productivity, it helps crews get the job done safely and efficiently.
Specifications
16 data points
Tower Specs
- Max load in telescopic platform
- 1000 kg
- Max platform height
- 19.7 m
- Platform swing (slewing) angle
- 360° degrees
- Platform Outside Dimensions
- 4.6m x 1.94m
- Boom length
- 5.41 m - 16.21 m
- Rotation of platform
- 360° degrees
- Elevation
- -17° - 79° degrees
- Type of boom
- Telescopic
- Extension width of outriggers
- 2.4 - 4.4 m
- Operational footprint
- 4.4 m
- Safe working load across platform
- 1000 kg
- Deployment side
- 360° degrees
Truck Specs
- Traveling height (stowed)
- 3.5 m
- Traveling width
- 2.5 m
- Traveling length
- 8.5 m
- Overall weight (approx)
- 10,800 kg

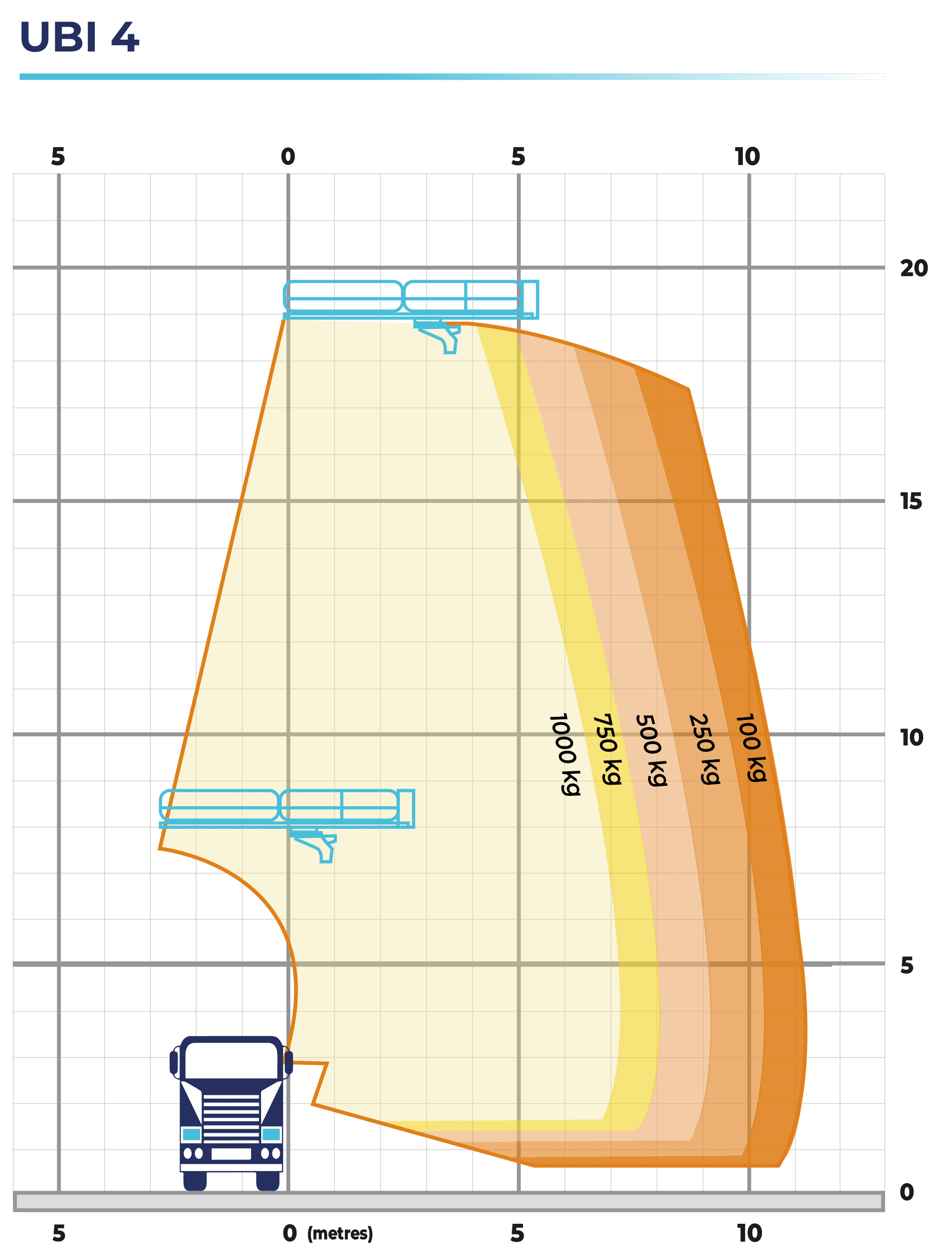

Working Envelope
Reach diagram
Additional Equipment
Equipment installed on unit available for client usage.
- Generator 7KVA : Single-Phase
- Starlink
Wet Hire Rates
Daily rate excl GST
UBI 4Aerial Work Platform
Across11 m
Down0 m
Up19 m
$1,600.00($200 per hr)
- Wet hire refers to Hire of Unit and our operator.Additional operators can be provided for an additional charge.Minimum hire period = 8 hours (incl travel). After 8 hours, truck hourly rate + overtime applies.Overtime = Hire over 8 continuous hours, hire on weekends and hire between the hours of 6pm – 6am.
- Overtime = "Truck hourly rate" plus $59 per hour (+ GST).Public Holiday rate = "Truck hourly rate" plus $78 per hour (+ GST).Travel is subject to overtime and public holiday rates.
- Living Away from Home Allowance per operator = $350.00 per day (+GST).
Need under bridge access?
