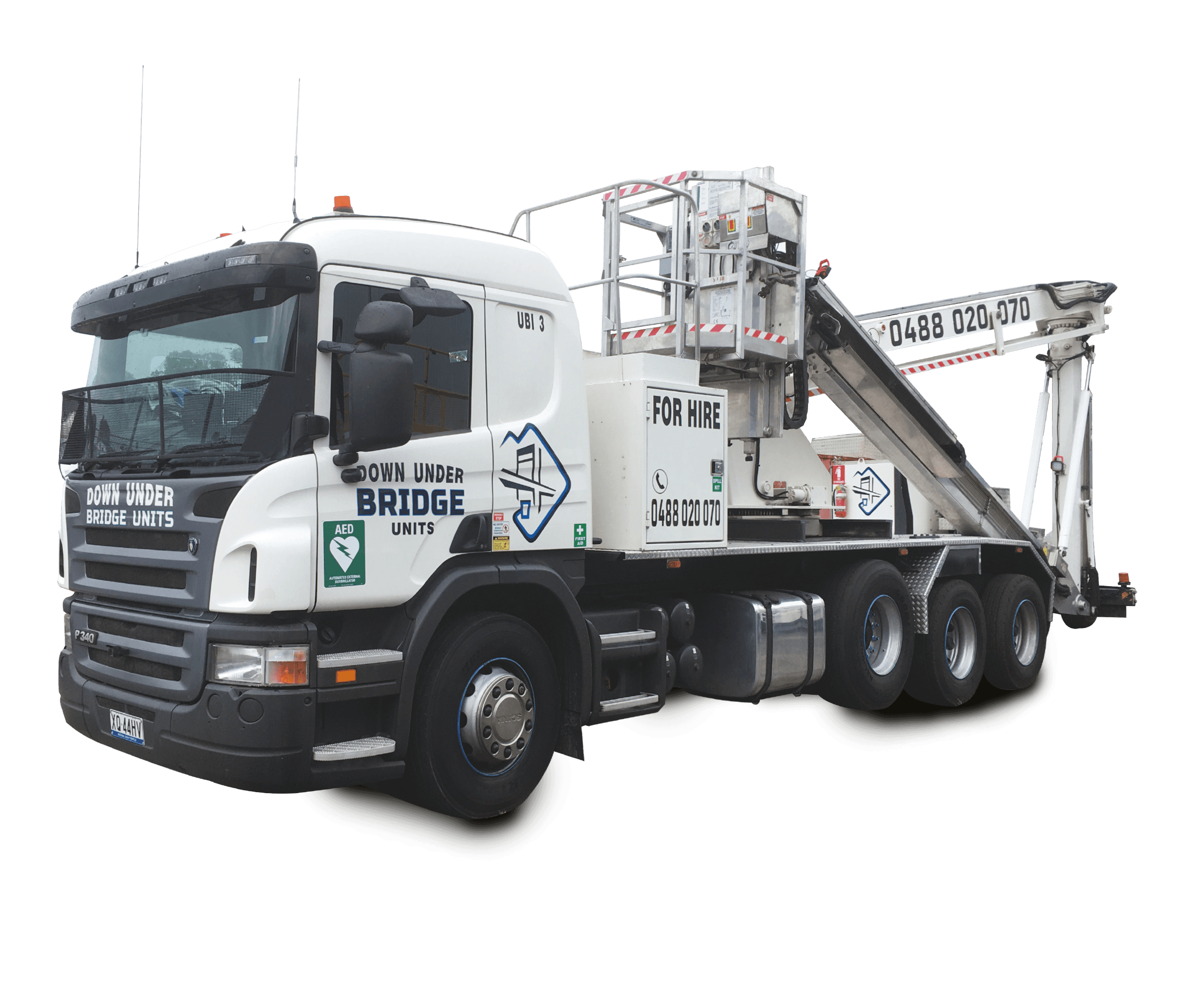

Under bridge unit
16m Barin Telescopic Bucket
UBI 3
Download PDF16m Barin Telescopic Bucket
250kg working load

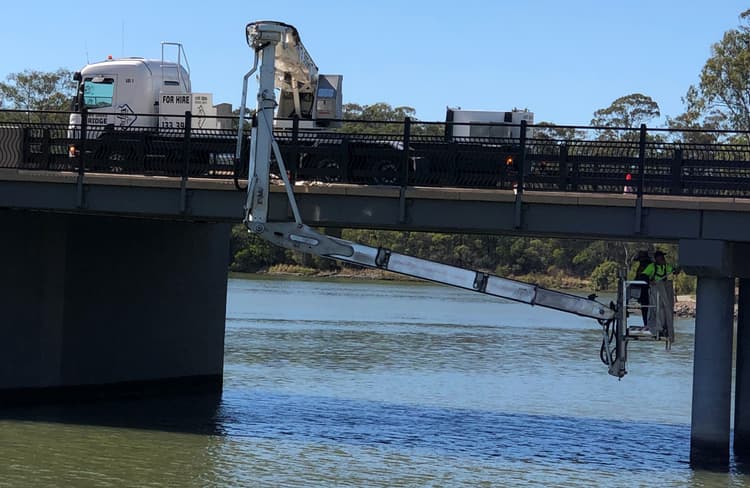

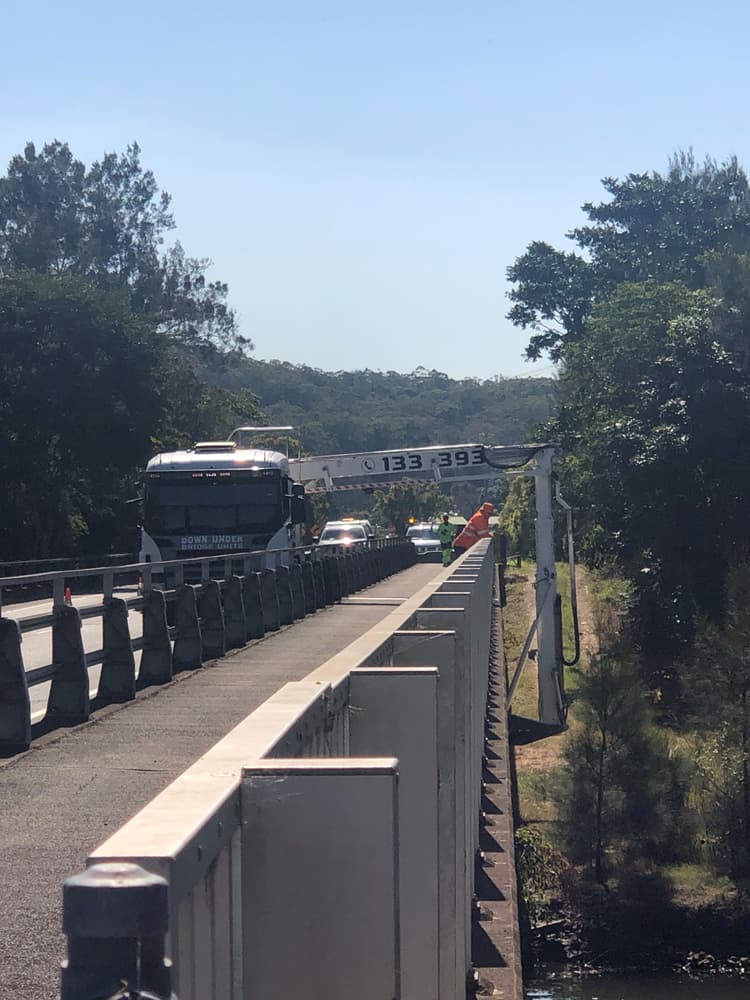

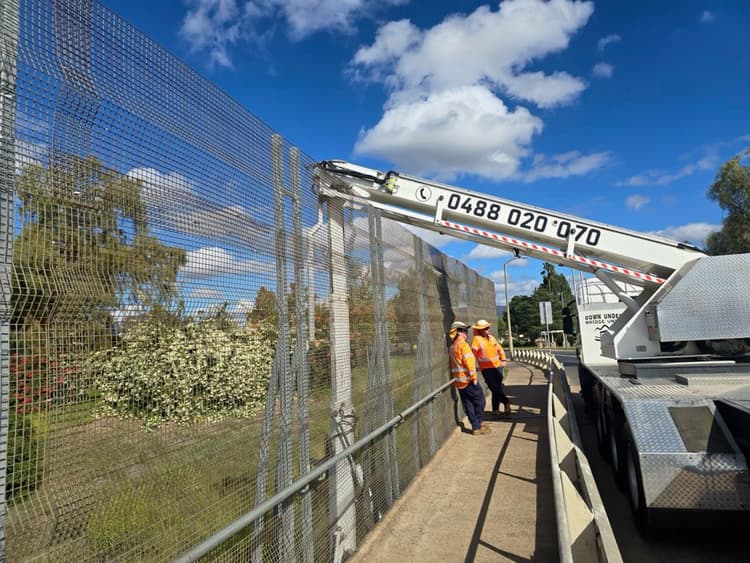

This Under Bridge Inspection Unit makes inspecting high and hard-to-reach structures simple and efficient. With a maximum reach of up to 15 metres above and 16 metres below the bridge, it allows quick and easy access to critical components that are otherwise difficult to inspect. Ideal for bridges, jetties, wharves, and overpasses, it delivers reliable performance where precision access matters most.
Specifications
16 data points
Tower Specs
- Max reach under bridge
- 13 m
- Max reach alongside bridge
- 2 - 20 m
- Max lowering depth
- 14 m

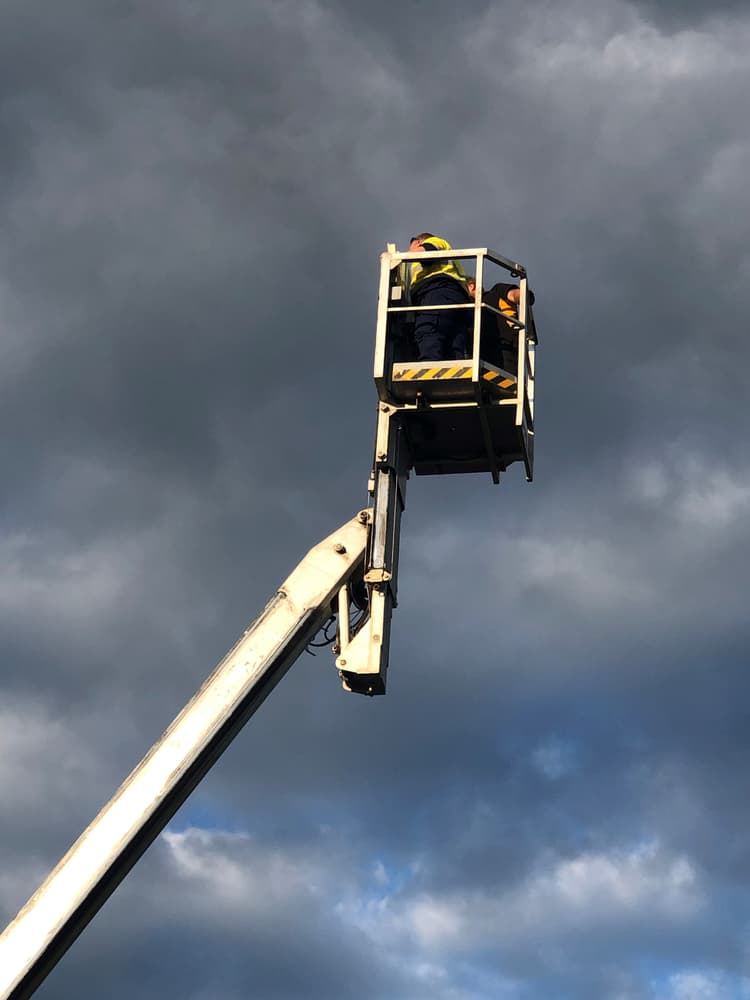

- Dimension of basket
- 1.4 x 1.2 m
- Side walk clearance (at max barrier height)
- 1.5 m
- Side walk clearance (at min barrier height)
- 3.3 m
- Hand rail / Barrier max clearance
- 5.8 m
- Operational footprint
- 2.5 m
- Safe working load
- 250 kg
- Rotation of basket under bridge
- 180° degrees
- Deployment side
- Left and right
- Max Bucket Lift Height
- 1.8 m
Truck Specs
- Traveling height (stowed)
- 3.5 m
- Traveling width
- 2.5 m
- Traveling length
- 11 m
- Overall weight (approx)
- 23,000 kg

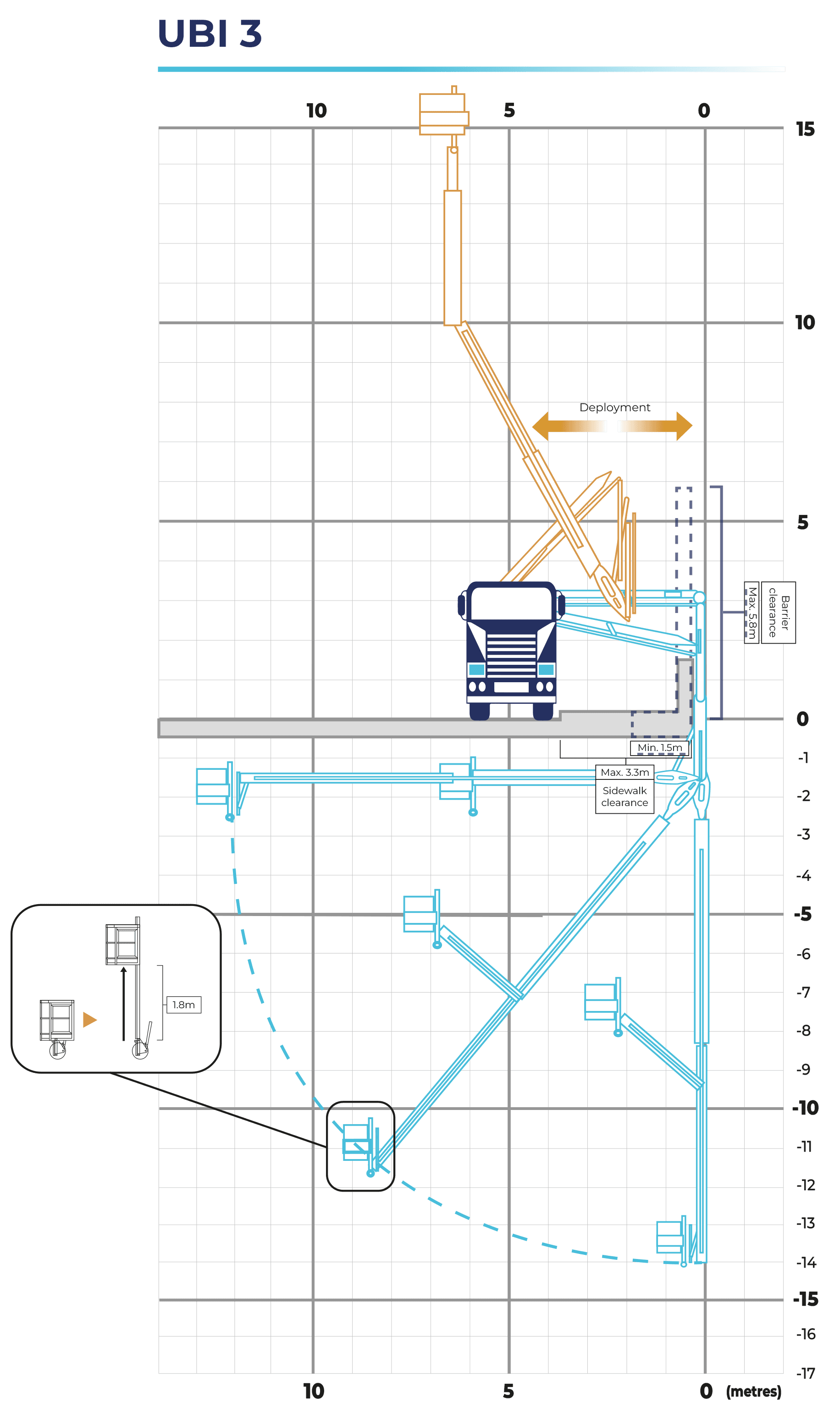

Working Envelope
Reach diagram
Additional Equipment
Equipment installed on unit available for client usage.
- Generator 6KVA : Single-Phase
- Screw Compressor 60CFM
- Starlink
Wet Hire Rates
Daily rate excl GST
UBI 3Telescopic Bucket
Across6 - 13 m
Down14 m
Up16 m
$2,808.00($351 per hr)
- Wet hire refers to Hire of Unit and our operator.Additional operators can be provided for an additional charge.Minimum hire period = 8 hours (incl travel). After 8 hours, truck hourly rate + overtime applies.Overtime = Hire over 8 continuous hours, hire on weekends and hire between the hours of 6pm – 6am.
- Overtime = "Truck hourly rate" plus $59 per hour (+ GST).Public Holiday rate = "Truck hourly rate" plus $78 per hour (+ GST).Travel is subject to overtime and public holiday rates.
- Living Away from Home Allowance per operator = $350.00 per day (+GST).
Need under bridge access?
