4m - 7m Moog Crawler Mounted Platform
CR 1
Download PDF4m - 7m Moog Crawler Mounted Platform
300kg platform load

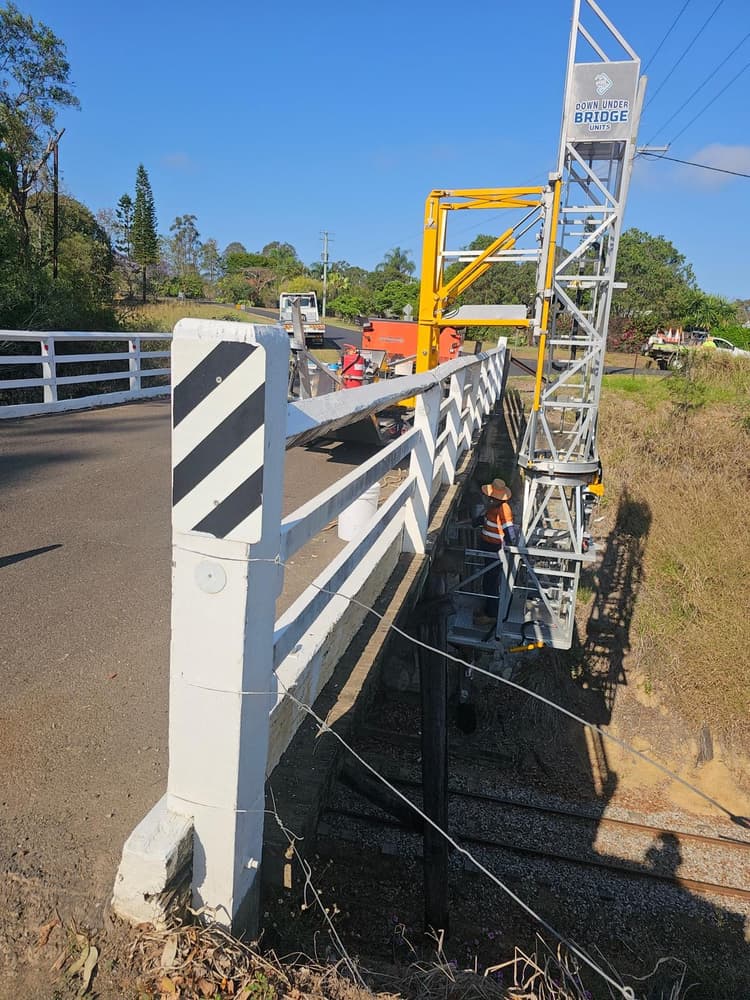

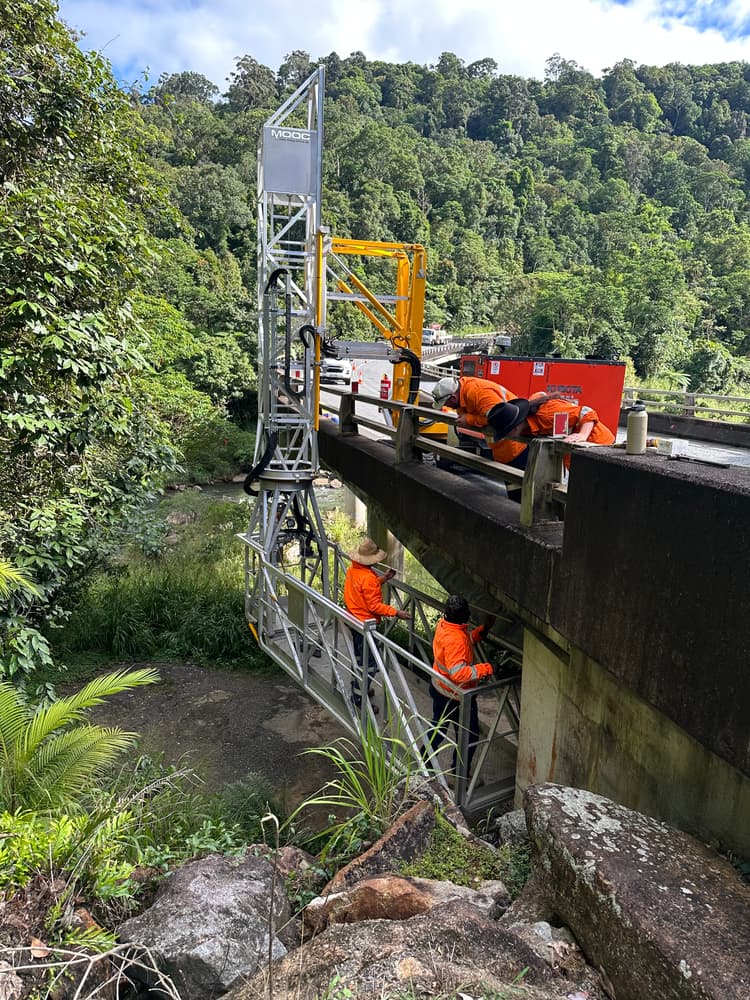

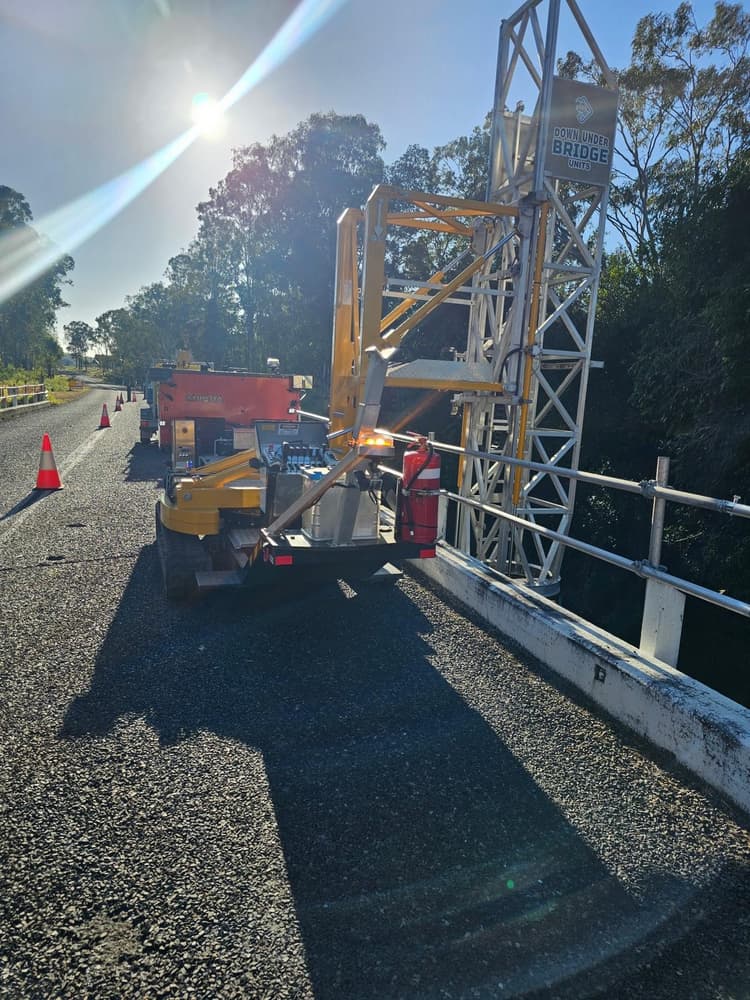

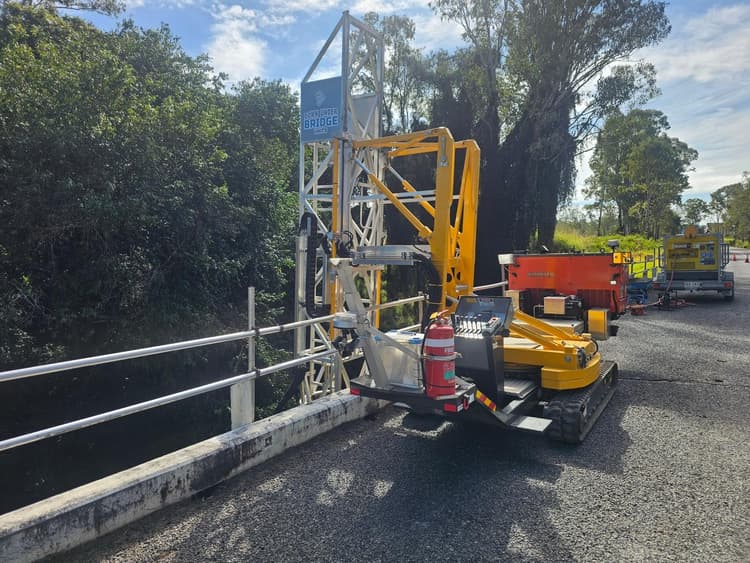

Designed to get onto the narrowest of structures, this lightweight platform accommodates up to two operators and is ideal for inspections, maintenance, and repair work. Perfect for jetties, bridge walkways, pedestrian bridges, timber bridges, weight-restricted bridges, and single-lane bridges, it delivers fast setup and pack-up to keep your project moving. A generator is included at no extra cost, so you're ready to get to work from day one.
Specifications
15 data points
Tower Specs
- Max Platform length under bridge
- 4m - 7 m
- Max Platform length alongside bridge
- 4 m
- Max lowering depth
- 4.4 m
- Width of platform
- 1 m
- Side walk clearance
- 1 m
- Hand rail / Barrier max clearance
- 2.2 m
- Operational footprint
- 1.7 m
- Max load at end of telescopic platform
- 150 kg
- Safe working load across platform
- 300 kg
- Rotation of platform under bridge
- 180° degrees
- Deployment side
- Left and right

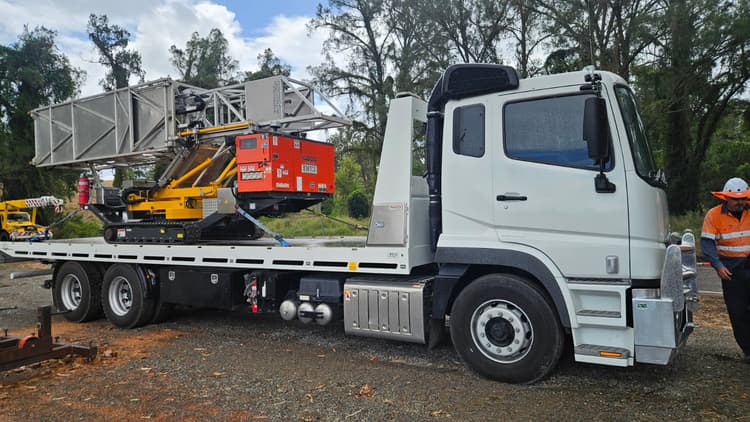

Truck Specs
- Traveling height (stowed)
- 2 m
- Traveling width
- 1.7 m
- Traveling length
- 4 m
- Overall weight (approx)
- 3,700 kg

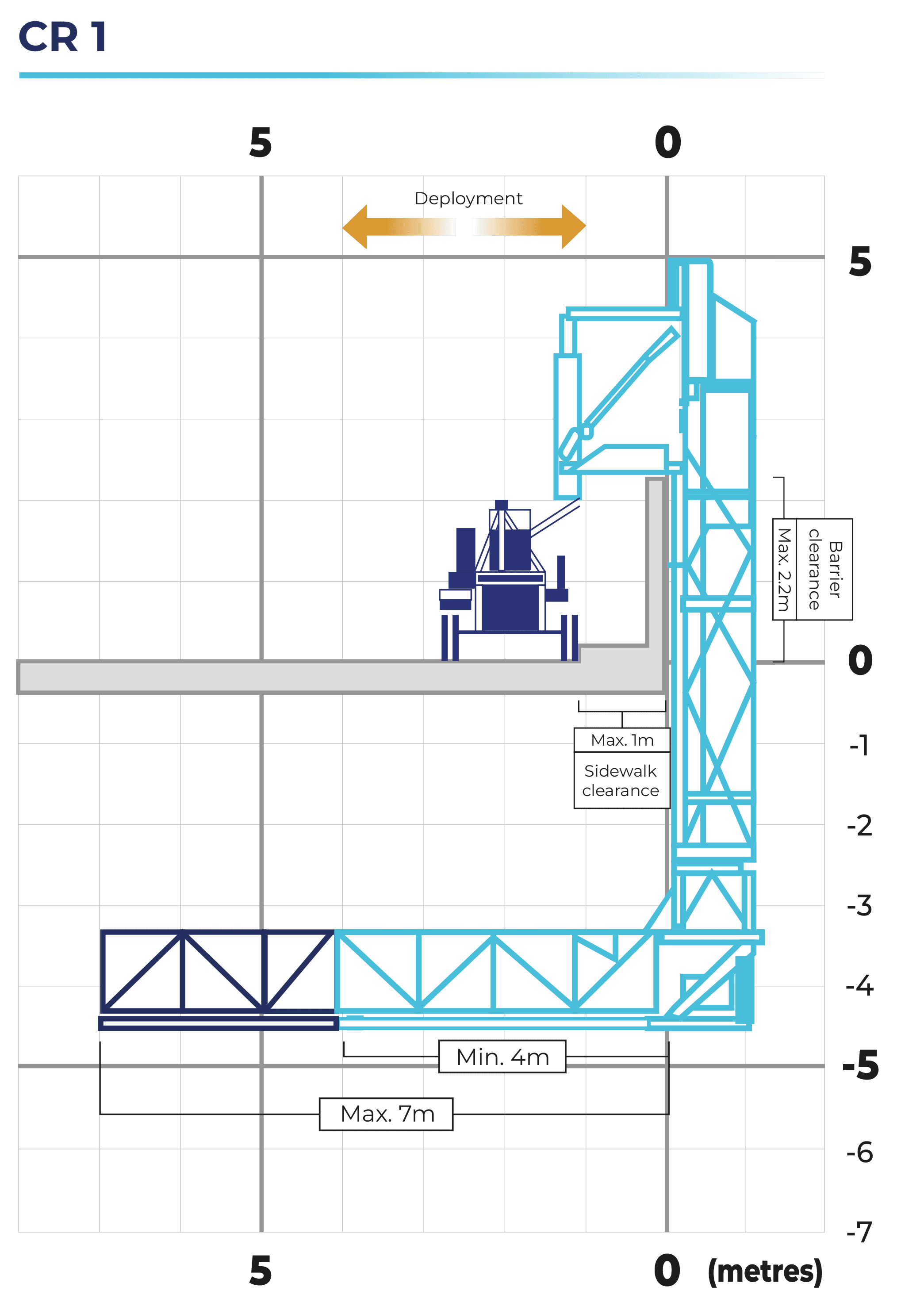

Working Envelope
Reach diagram
Additional Equipment
Equipment installed on unit available for client usage.
- Generator 18KVA : Three-Phase
- Starlink
Wet Hire Rates
Daily rate excl GST
CR 1Crawler Mounted Platform
Across4 - 7 m
Down4.4 m
Up0 m
$2,392.00($299 per hr)
- Wet hire refers to Hire of Unit and our operator.Additional operators can be provided for an additional charge.Minimum hire period = 8 hours (incl travel). After 8 hours, truck hourly rate + overtime applies.Overtime = Hire over 8 continuous hours, hire on weekends and hire between the hours of 6pm – 6am.
- Overtime = "Truck hourly rate" plus $59 per hour (+ GST).Public Holiday rate = "Truck hourly rate" plus $78 per hour (+ GST).Travel is subject to overtime and public holiday rates.
- Living Away from Home Allowance per operator = $350.00 per day (+GST).
